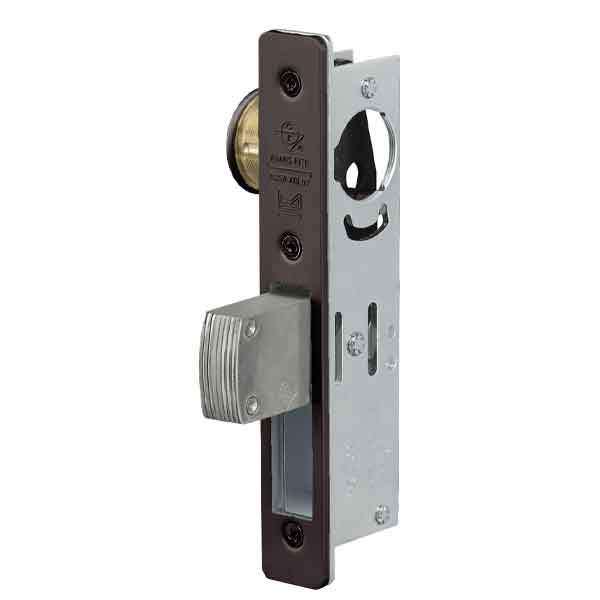

Adams Rite - MS Deadlock - MS1851S - 31/32" Backset - ANSI Size - Straight Bolt - Radial Faceplate - Dark Bronze - Metal Door
Adams Rite - MS Deadlock - MS1851S - 31/32" Backset - ANSI Size - Straight Bolt - Radial Faceplate - Dark Bronze - Metal Door
Adams Rite
Couldn't load pickup availability
LIST PRICE: $72.00
SLK-ADR-MS1851S-210-313
Item Number: 6978
The ANSI size MS1850S Series MS® Deadlock utilizes a laminated stainless steel bolt, both activated by a pivot mechanism to provide maximum security for hollow metal doors.
More Details Below
Features
Backset | 31/32" [24.7 mm] |
Case | Measures 1” x 6” x 2-1/4” [25.4 mmx 152.4 mm x 57.2 mm]. Steel with corrosion-resistant plating. |
Bolt |
Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw. |
Faceplate | Radial - Measures 1-1/4” x 8” [31.8 mm x 203.2 mm] |
Door Types | Metal Doors Only |
Standard Package | Individually boxed with faceplate and mounting screws. |
Installation Instructions Download Here
Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam. Cylinder Sold Separately
For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI), the MS1850SN Series MS® Deadlock provides maximum security and ease of installation.
Operation
360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder, available separately or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.
