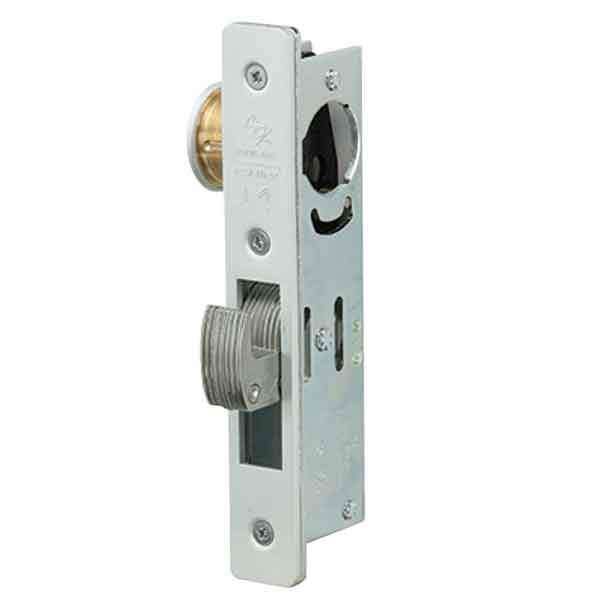

Adams Rite - MS Deadlock - MS1850S - 1-1/2" Backset - ANSI Size - Hook Bolt - Flat Faceplate - Aluminum
Adams Rite - MS Deadlock - MS1850S - 1-1/2" Backset - ANSI Size - Hook Bolt - Flat Faceplate - Aluminum
Adams Rite
Couldn't load pickup availability
LIST PRICE: $72.00
SLK-ADR-MS1850S-450-628
Item Number: 6962
The MS1850S Series MS® Deadlock utilizes a laminated stainless steel bolt to provide maximum security for a single leaf narrow stile aluminum door. .
A huge bolt of laminated stainless steel, nearly 3" long, activated by an uncomplicated pivot mechanism, has made the basic MS1850S Series MS® Deadlock the standard of the narrow stile aluminum door industry. The length of this bolt provides maximum security for a single leaf door, even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be.
More Details Below
Features
| Backset | 1-1/2" |
| Case | Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating. |
| Bolt |
Hookbolt measures 5/8" x 1-3/8" [15.9 mm x 34.9 mm] with 13/16 [20.6 mm] throw. Hook shaped bolt repelspry bar attempts to “spread” the door from its jamb or lift it off its track |
| Faceplate | Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. |
| Door Types | Metal Doors Only |
| Standard Package | Individually boxed with faceplate and mounting screws. Strike plates, cylinders and/or thumbturns available separately. |
Installation Instructions Download Here
Operation:
360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.
