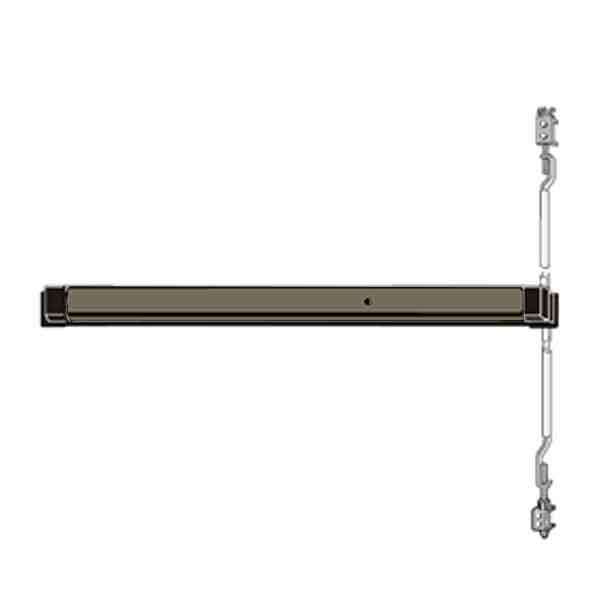

Adams Rite - 8622-MLR - Narrow Stile - Concealed Vertical Rod Exit Device - 36" - Anodized Dark Bronze - Motorized Latch Retraction (MLR)
Adams Rite - 8622-MLR - Narrow Stile - Concealed Vertical Rod Exit Device - 36" - Anodized Dark Bronze - Motorized Latch Retraction (MLR)
Adams Rite
Couldn't load pickup availability
SLK-ADR-8622MLR-36
Item Number: 6599
The 8600 Series Concealed Vertical Rod Exit Device with Motorized Latch Retraction (MRL) is designed for narrow stile aluminum applications that require a lifesafety exit device with concealed vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors
More Details Below
Features
| Certifications | UL 305 Panic hardware ANSI/BHMA A156.3-2008 Grade 1 ANSI/BHMA A156.3-2014 Grade 2 |
| Electrification | Motorized Latch Retraction (MLR) - Using a Power Supply, MLR provides momentary or continuous latch and push bar retraction. |
| Materials | Push bar made of extruded aluminum, clad or anodized in a variety of finishes |
| Handing | Device is non-handed. |
| Push bar Length |
Standard size: 36" [914.4 mm] Standard width bars can be field cut to the next smallest opening width. |
| Bar Height | Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm]. |
| Door Thickness | Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]. Device requires modification when used with cylinder in doors over 1-3/4" [44.5 mm]. |
| Door Height |
Standard configuration suitable for doors up to 66" [1,676.4 mm] above the selected bar height. For doors over 66" [1,676.4 mm] above bar height, up to 10' [3.05 m] use 8655 Tall Door Kit SOLD Separately |
| Stile Width | Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors |
| Projection | 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged. |
| Dogging | Standard dogging with hex key or optional cylinder dogging. |
| Fasteners | Standard machine screws. |
| Cylinders | Accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam.r. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm] |
| Cylinder x Fixed Pull Functions | For entry trim function 03 (Night latch - key releases latch) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accepts any standard mortise cylinder with MS® cam. If key entry operation is required, any standard mortise cylinder with MS® cam can be installed through an 8650 Cylinder Escutcheon. 8650 Cylinder Escutcheon Kit available separately. |
| Entry Trim Functions | For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately. |
| Bolts and Strikes | The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. Adjustable protected steel rods. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability. |
Download Installation Instructions Here
The differences between SE - Silent Entry (Motorized Latch Retraction) and LR (Electric Latch Retraction)
Using a Power Supply, SE(Motorized Latch Retraction) provides momentary or continuous latch and push bar retraction. SE-MLR devices are quieter and require less current than LR (Electric Latch Retraction) devices. This is due to the motor in the SE-MLR devices in lieu of the solenoid found in Electric LR devices. In addition, Electric LR devices only retract the latch while SE-MLR devices retract the latch and the push bar.
