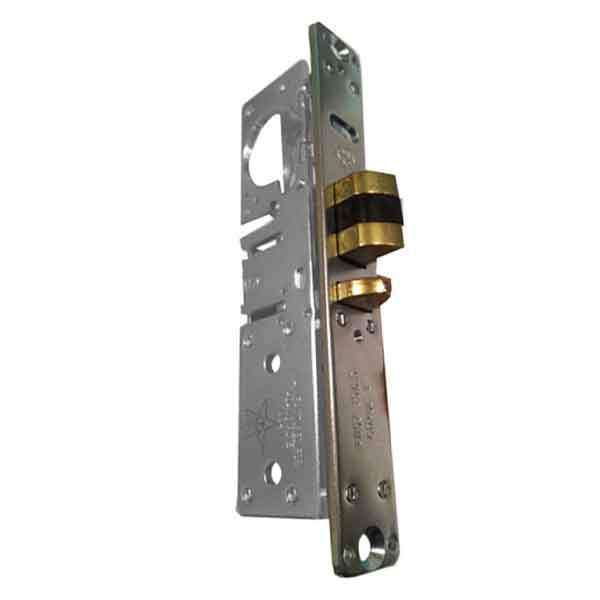

Adams Rite - 4513 - Standard Duty Deadlatch - 31/32" Backset - RH /LHR - Lock Body Only - No Face Plate - Zinc Plated
Adams Rite - 4513 - Standard Duty Deadlatch - 31/32" Backset - RH /LHR - Lock Body Only - No Face Plate - Zinc Plated
Adams Rite
Couldn't load pickup availability
LIST PRICE: $63.00
SLK-ADR-4513-26-IB
Item Number: 7003
The 4510 Series Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape.
More Details Below
Features
Backset | 31/32" [24.6 mm] |
Case | Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth [25.4 mm x 147.6 mm x depth]. Depth varies by backset |
Bolt Holdback | While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging. |
Latchbolt | All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2" [12.7 mm x 25.4 mm x 12.7 mm] throw. |
Auxiliary Bolt | All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry |
Faceplate | No Faceplate |
Door Types | Aluminum , Swinging Door |
Standard Package | Individually boxed with mounting screws. |
Installation Instructions Download Here
Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam. Cylinder Sold Separately
