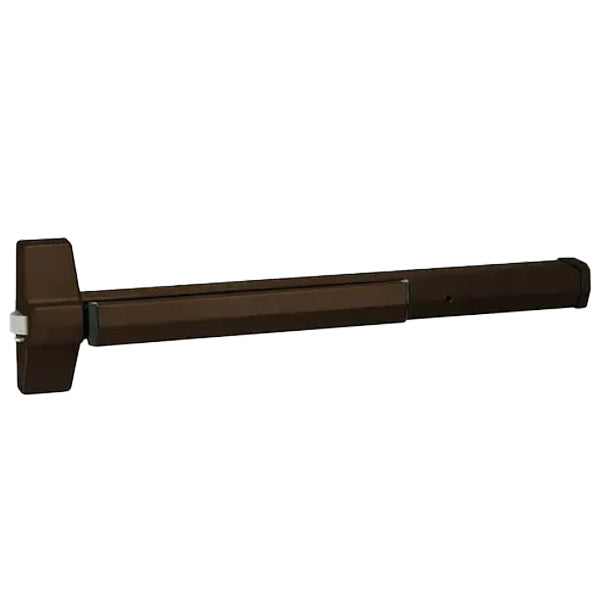

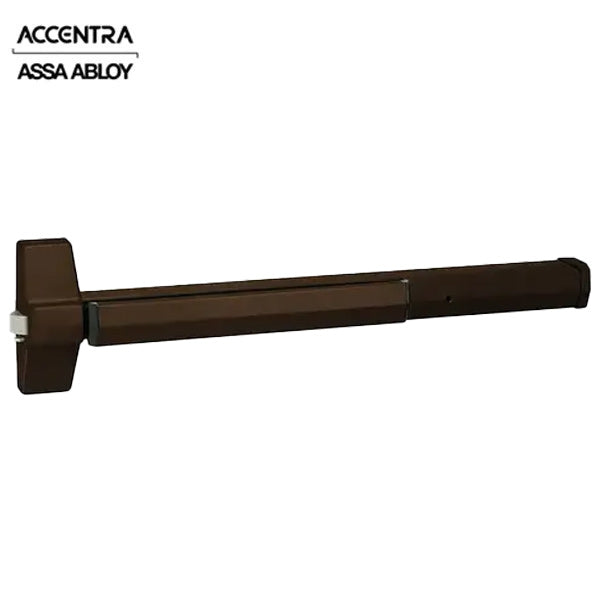

Accentra (Formerly Yale) - 7100 - Rim Exit Panic Bar Device - 48” - Wide Stile Pushpad - Non-handed - 693 - Black Painted
Accentra (Formerly Yale) - 7100 - Rim Exit Panic Bar Device - 48” - Wide Stile Pushpad - Non-handed - 693 - Black Painted
Accentra
Regular price
$1,618.51 USD
Regular price
$1,942.21 USD
Sale price
$1,618.51 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The 7100F is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. Designed for application in high-use areas, the 7100F comes in a variety of finishes and can be combined with a variety of trims to match any desired style.
Features:
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel pullman latch bolt
- Electroplated ferrous components provides corrosion resistance
- Non-handed for easy installation
- For use on single swing doors, pairs of doors with removable mullions and metal, wood or composite door materials
Specifications:
| Door Opening Width | 48" |
| Door Thickness | 1-3/4" |
| Minimum Stile Width | 4-1/2" |
| Projection | 3-1/4" Active, 2-3/4" dogged |
| Latch bolt | 3/4" deadlocking stainless steel pullman-type |
| Strike | 757F, 793 optional (double door application, panic only) |
| Fasteners | Machine screw and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
| Warranty | 5-year Limited |
| UL/cUL Listed | FVSR/FVSR7 - Panic hardware GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3-hr) |
| ANSI/BHMA Certified | A156.3 Type 1, Grade-1 |
| Model | Accentra (Yale) |
