ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1
ABH - A110 - Continuous Gear Hinge - Full Mortise - 83" length - Clear Aluminum - Grade 1
ABH
Regular price
$79.41 USD
Regular price
$95.58 USD
Sale price
$79.41 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-ABH-A110HDC083-CLEAR
Continuous hinges alleviate most common alignment problems such as door binding and sagging by evenly distributing the weight throughout the entire door and frame. Provides extra security by eliminating the gap between the door and the frame; thus, disallowing the ability to pry the opening.
Features:
- Fully Concealed
- Heavy Duty
- No door inset, flush mount
- 83" long
- 48" door width maximum
- 450lbs max door weight
-
NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call (855) 928-0349 between Monday and Friday 9AM-6PM EST
Specifications:

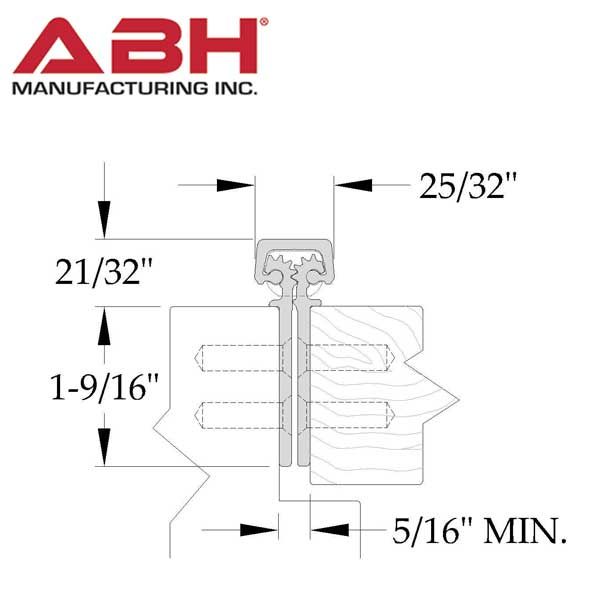

| Function: | Continuous concealed door hinge, full mortise |
| Handing: | Reversible |
| Door Thickness: | 1-3/4" |
| Door Width Max: | 48" |
| Door Weight Max: | 450lbs. |
| Fasteners: | 12-24 X 3/4" undercut self drilling, thread forming tek machine screws |
| Length: | 83" |
| Finish: | Clear Anodized Aluminum |
| Fire Rating: | Approved for use on metal doors up to 90mins. Approved for wood doors up to 60mins. |
| Certifications: | ANSI / BHMA 156.26 Grade 1 |
| Warranty: | Limited Lifetime Manufacturer's Warranty |
