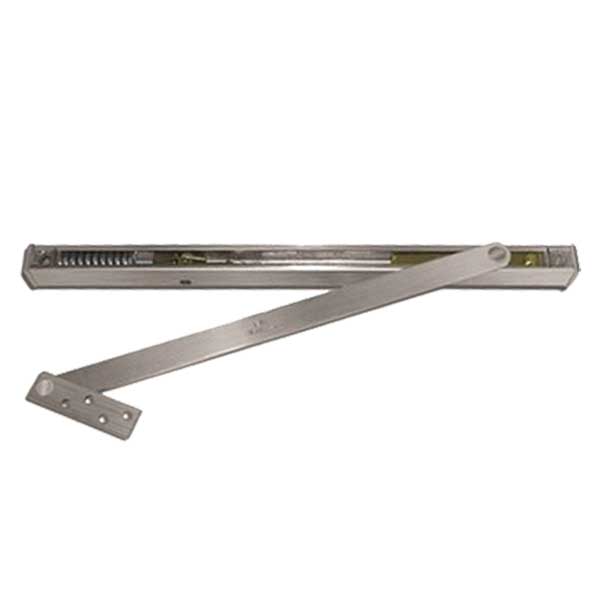

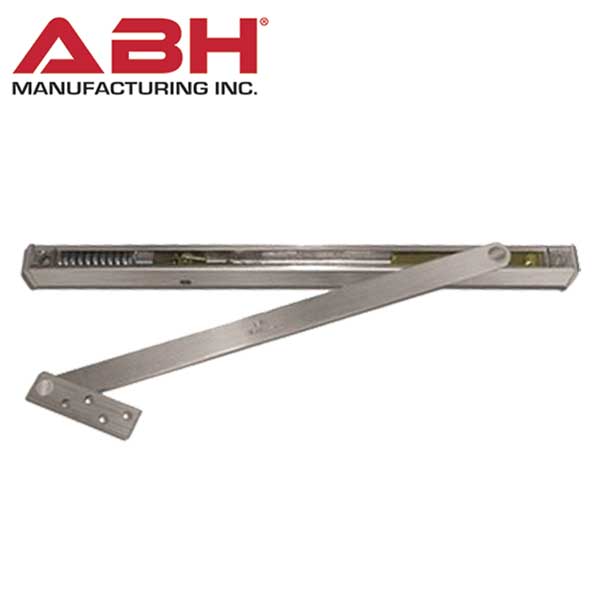

ABH - 1020 - Concealed Mount Overhead Door Stop - Satin Stainless
ABH - 1020 - Concealed Mount Overhead Door Stop - Satin Stainless
ABH
Regular price
$221.99 USD
Regular price
$264.25 USD
Sale price
$221.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-ABH-1000-1011-1021-1037-US32D
The Stop Function Heavy Duty Concealed Mount Closer Arm is for interior or exterior use on frequent traffic and heavy weight doors. Can be used on single or double acting doors with hinges, swing clear or offset pivots or center hung doors. Shock absorbing spring provides a 3 to 5 degree cushion before a dead-stop.
Features:
- Concealed Mount
- Heavy Duty
- Stop function applied
- Singe or Double acting doors
- Non-handed
- For Interior or exterior use on frequent traffic and heavy weight doors
-
NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call (855) 928-0349 between Monday and Friday 9AM-6PM EST
Specifications:
| Function: | Stop Function |
| Door Thickness: | 1-3/4" minimum |
| Frame Opening: | 85° to 110° of opening (5° increments) |
| Door Width: | Fits butt hinges or offset pivots 27” - 29-15/16”. 30” - Center Hung 32-15/16” |
| Handing: | Non-handed |
| Spring: | Shock absorbing spring provides 3° to 5° cushion before dead-stop |
| Material: | Stainless Steel |
| Finish: | Satin Stainless Steel |
| Mounting Style: | Concealed |
| Certification: | ANSI Code C01541, UL Listed 90min. wood and 3hr metal doors |
