Von Duprin - 900-FA - Optional Distribution Board - Plug-In Relay to Provide An Interface With Fire or Other Emergency Override Systems

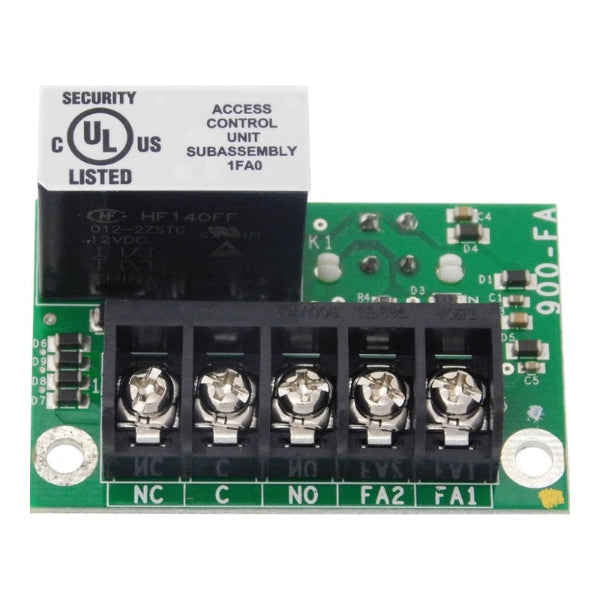

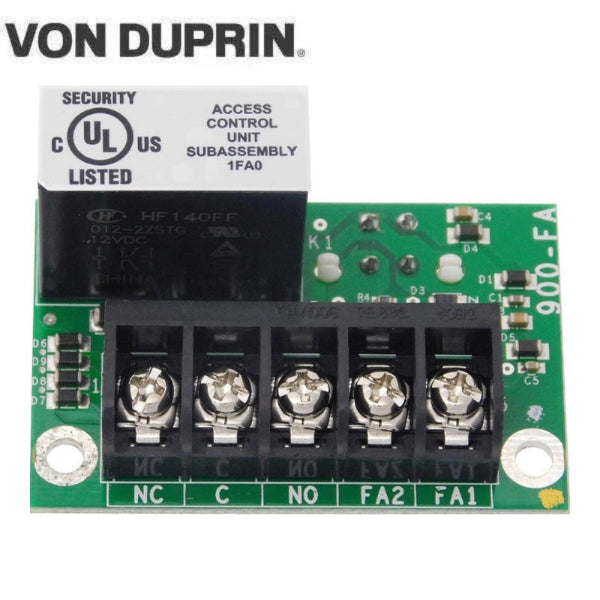

The Von Duprin 900-FA Fire Alarm Input Board is a plug-in relay module designed to interface with fire alarm or other emergency override systems. When activated by a fire alarm signal, it interrupts the power supply's DC output, ensuring connected devices respond appropriately during emergencies.

Features:

• Series: Von Duprin Power Supplies
• Device Supported: Fire Alarm
• Grade: Grade 1
• Product Type: Fire Alarm Input Board


The 900-FA Fire Alarm board can be installed on any one of the following power supply or option boards:

• PS902 Power Supply
• 900 2RS (2 relay)
• 900-2Q (2 Relay w/com)
• 900-4R (4 Relay)
• 900-4RL (4 Relay w/logic)
• 900-8F (8 Zone, Distribution-fuse) 900-8P (8 Zone, Distribution-PTC)

Board Input Power: Board requires 0.05A max. of power supply output current to operate

Output (Supervision): 30VDC, 1A resistive dry contact
