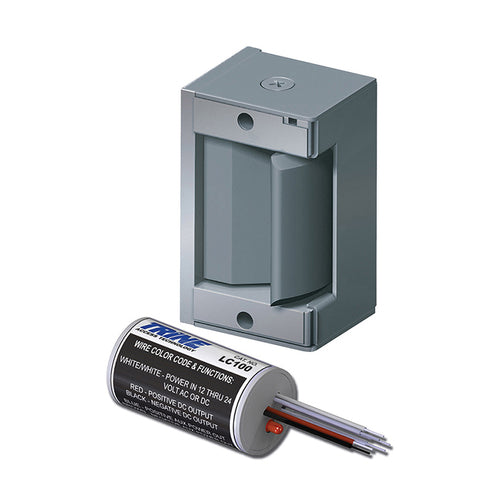

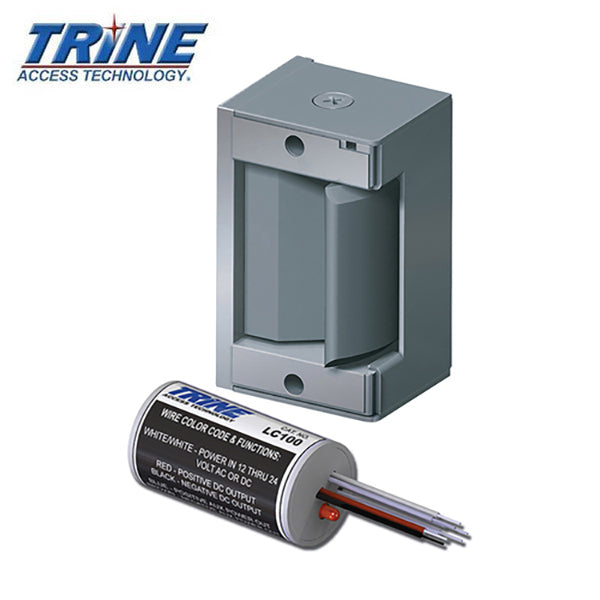

Trine - 30RS - 3000 Series - 11-29 AC/DC - Electric Strike with LC100 External Line Conditioner - Fire Rated ANSI - Grade 1

RS - Fail Safe - Locks with power

This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-29 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection.

Features:

• LC100 can be placed up to 15 feet away from the electric strike body.
• When used with the EN Series, 12DC must be selected and the LC100 must be located within 10' of the electric strike.
• Must be used with a 12DC unit & within 15 feet of strike
• Dimensions: H 1-13/16" X D 15/16"
