Seco-Larm - No Touch - RTE IR Sensor - Single Gang Sensor Plate - English
Seco-Larm - No Touch - RTE IR Sensor - Single Gang Sensor Plate - English
Seco-Larm
Regular price
$99.00 USD
Regular price
$191.40 USD
Sale price
$99.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

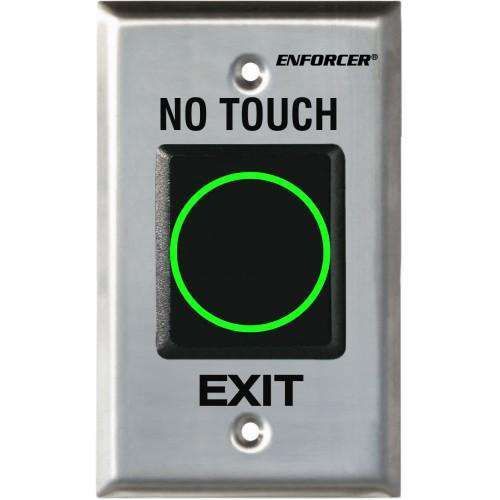

The ENFORCER No-Touch Request-To-Exit Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it is No-Touch, this sensor is ideal for use in hospitals, clinics, labs, clean rooms (to reduce the risk of contamination), schools, factories, or offices.
- 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
- Dual voltage, 12~24 VAC/VDC
- Range adjustable from 2-3/8"-8" (6~20 cm)
- Stainless steel single-gang plate
- Quick connect screw-less terminal block
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) when activated
| Type | No Touch Request-to-Exit Sensor Wall Plates |
| Current Draw | 120mA@12VDC |
| Sensing Range | Adjustable, 2-3/8"~8" (6-20 cm) |
| Operating Voltage | 12~24 VAC/VDC |
| Reaction time | 10mS |
| LEDs - Red | Standby |
| LEDs - Green | Triggered |
| Relay Type | Form C (NO/NC/COM) 3A@24VDC |
| Output Time | Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 4-1/2" x 2-3/4" x 1-5/16" (115 x 70 x 33.5 mm) |
| Weight | 3oz (85g) |
