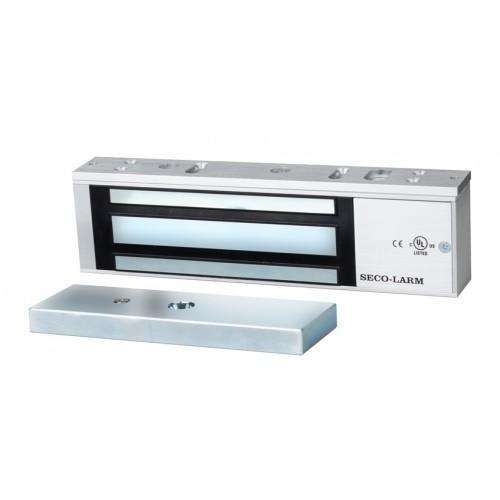

Seco-Larm - Single Door -Maglock - 1200 lb Holding Force - Bond Sensor Status LED - UL Listed
Seco-Larm - Single Door -Maglock - 1200 lb Holding Force - Bond Sensor Status LED - UL Listed
Seco-Larm
Regular price
$182.33 USD
Regular price
$218.79 USD
Sale price
$182.33 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-SLM-E-941SA-1K2PQ
- 1,200-lb Holding force
- Anodized aluminum housing (US 28)
- Selectable 12/24 VDC operation
- No residual magnetism
- MOV surge protection
- Adjustable mounting bracket
- Complete mounting hardware for typical installations
- “L” and “Z” brackets available for easy mounting
- Detachable faceplate
- LIFETIME LIMITED WARRANTY
- Built-in dual-colored status LED and bond sensor to indicate locking status
- Bond sensor relay rated 3A@12VDC
| Holding Force | 1,200-lb (545kg) |
| Operating Voltage | 12/24 VDC±10% |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Electromagnet Dimensions | 10-1/2"x1-5/8"x2-5/8" (268x42x67 mm) |
| Armature Dimensions | 7-1/4"x5/8"x2-3/8" (185x16x61 mm) |
| Case Shipping Weight | 54-lb (24.5kg) |
| Weight | 11-lb (5kg) |
| Case Quantity | 5 pcs |
| Bond Sensor | Yes |
| Status LED | Yes |
