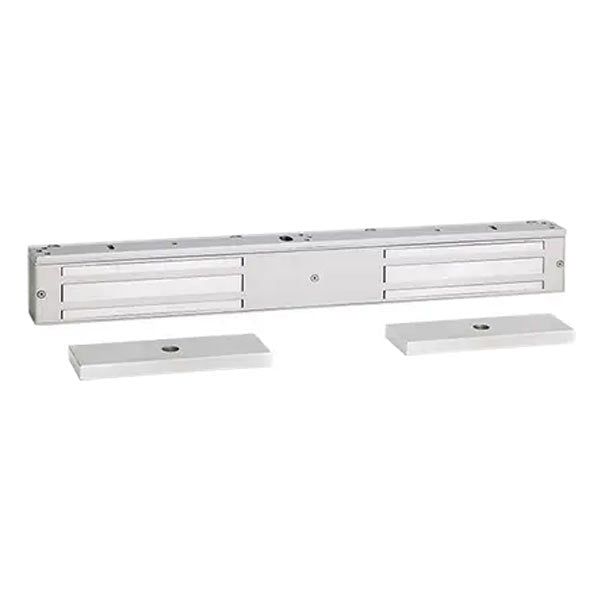

SDC - 1582V - Double Magnetic Lock - Surface Mount - 650lbs. - 12/24VDC - Satin Aluminum - Grade 1
SDC - 1582V - Double Magnetic Lock - Surface Mount - 650lbs. - 12/24VDC - Satin Aluminum - Grade 1
SDC
Regular price
$891.36 USD
Regular price
$1,069.59 USD
Sale price
$891.36 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-SDC-1582V-628
The SDC 1500 series EMLocks® are easy to stock, install, upgrade, and maintain. They include a lifetime warranty and have 650lbs of holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxyless design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.
Features:
- Comes with 650lb Holding Forces
- Autosensing 12/24 VDC Voltage Input
- Uniform Design & Installation
- Identical Housing, Template & Accessories
- Quick Mount Assembly
- Modular Design & Modular Field Upgrade Kits (Sold Separately)
- Field Upgradeable Without Removing From Frame
- ANSI/BHMA Grade 1 Compliant
- UL 294 : Standard for Access Control System Units
Specifications:
Construction: | Solid Metal |
Lock Function: | Electromagnetic Lock |
Holding Force: | 650 LB / 295 KG |
Voltage: | 12/24VDC Voltage Sensing Input |
Current: | 440mA @ 24VDC; 880mA @ 12VDC |
Door Position Sensor: | SPDT Dry, 250 mA @ 30VDC |
Dimensions: | 17-1/2” L x 2-1/8” H x 1-1/4”D |
Finish: | Satin Aluminum - 628 |
Certifications: | ANSI/BHMA Grade 1 Compliant. UL 294 Listed |
Warranty: | Manufacturer Lifetime Warranty |
