Schlage - 23-030 - Full Size Interchangeable Core 35.55 - C123 Keyway - 2 Keys - 6-Pin - Non Handed - Satin Chrome 626/US26D

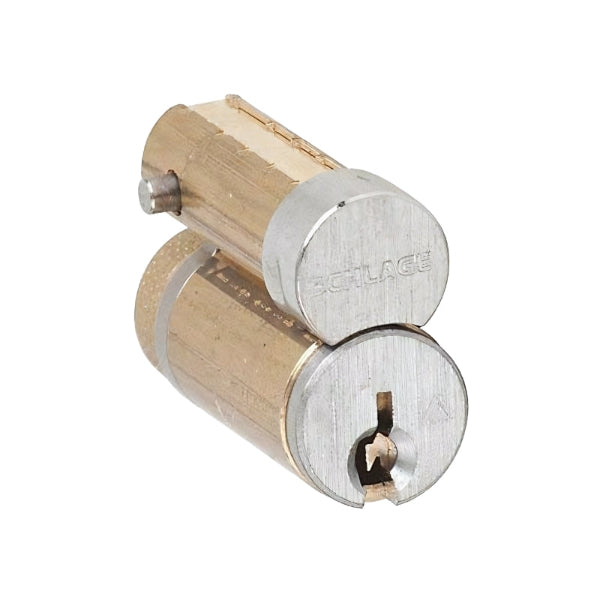

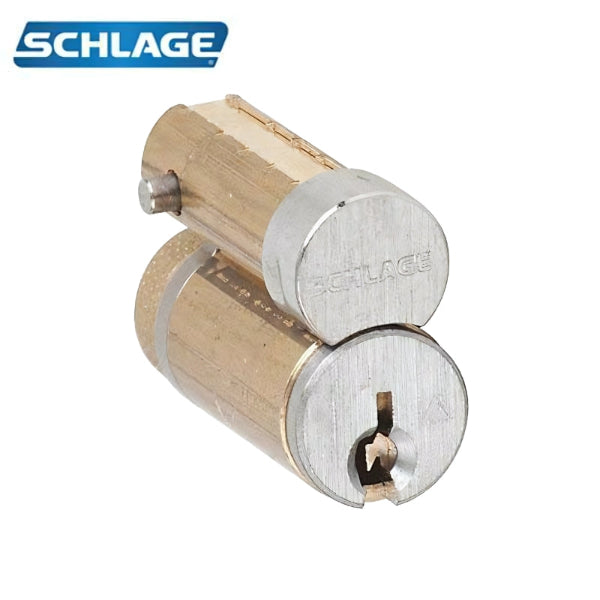

The Schlage 23-030-C123-626 is a Full-Size Interchangeable Core (FSIC) cylinder designed for commercial applications requiring efficient rekeying and enhanced security. This 6-pin core features the C123 keyway and comes 1-bitted with two operating keys, facilitating straightforward integration into existing master key systems. Its 626 (Satin Chrome) finish offers a sleek appearance suitable for various architectural styles.

Features:

• Fits Schlage locks and cylinder housing prepped for FSIC (full-size interchangeable core) or LFIC (large format interchangeable core)
• Fits Kaba/Simplex push-button locks with "S" prep
• Supplied 1-bitted, ready to be keyed
• No control key is included (must be ordered separately)

Specifications:

• AD Series (all designs)
• AL Series (Saturn, Jupiter, and Neptune design)
• B250 Series
• B500 Series
• B600/700/800 Series
• CP Series (all designs)
• CS210
• D Series Knob (Orbit design)
• L Series (all designs except concealed)
• ND Series Lever (all designs)
• S Series (all designs except for Flair)
• S200 Series (all designs for S210, all except for Flair for other functions)

Downloads:

• Spec Sheet
