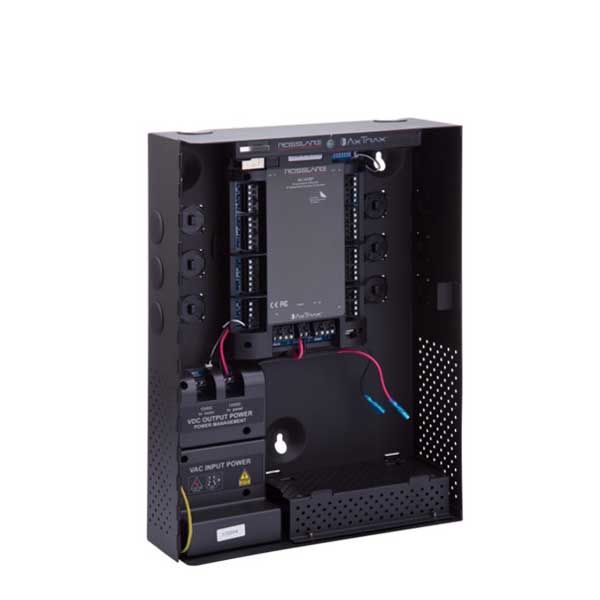

Rosslare - AC425IP - Expandable Networked Access Control Panel - Enclosed - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare - AC425IP - Expandable Networked Access Control Panel - Enclosed - 4 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC
Rosslare
Regular price
$1,093.87 USD
Regular price
$1,181.93 USD
Sale price
$1,093.87 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-ROS-AC-425IP-BU
Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 4 reader expandable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.
Features:
- Mountable & lockable metal enclosure
- Integrated with transformer, power supply/charger, sounder and control board
- Fully expandable up to 8 Readers and 12 Inputs/Outputs
- Switch mode power supply (SMPS) and a power management board (PM-10)
- Networked up to 1023 Panels
- Networked up to 8184 Doors
- Supports up to 30,000 users in off-line mode, unlimited server based capacity
- 20,000 event history entries per computer
- multi-user authentication for high-level security
- supports a wide range of Wiegand and PIN formats
Specifications:
| Type: | Network Control Panel |
| Readers: | 4 reader ports, 8 reader ports when using MD-D04B Communication: Wiegand or Clock & Data Output voltage to reader: 12 VDC Max. current to reader: 245 mA LED control output and Tamper Input |
| Power Cable Type: | Type B plug power cable |
| Inputs: | 4 supervised high impedance inputs. 8 or 12 supervised inputs when using MD-D04B or MD-IO84B expansion boards Maximum voltage: 5 VDC |
| Outputs: | 4 Form C 5 Amp relay outputs. 8 outputs when using MD-D04B or MD-IO84B expansion boards |
| Interface: | TCP/IP |
| TCP/IP | On-board RJ-45 connector |
| Selectable Comm. Speed: | 9600, 19200, 57600, 115200 bps |
| Max Readers: | 8 |
| Networking: | Rosslare's AxTraxNG™ Server |
| Users: | 30,000 active credentials (Card & PIN) |
| Unauthorized & Access Groups: | 30,000 Unauthorized Users |
| Event Log: | 20,000 Events |
| Operating Voltage: | 90 ~ 265 VAC, 50 ~ 60 Hz from mains power |
| SMPS Max Input Current: | 1.5 A |
| SMPS Output Power: | 15 VDC, 4 A (60 Watts) to the power management board |
| PM-10 Input Power: | 15 VDC, 4 A to the power management board |
| PM-10 Output Power: | Two PTC fused outputs, each provides 13.8 VDC, 2 A. One output for controller and readers, One output for locks |
| Battery Charger: | 13.8 VDC, 300 mA for 12 VDC, 7 Ah Lead Acid Battery |
| Housing: | ME-1015 Power Management Enclosure |
| Dimensions: | 14.4 x 10.4 x 3.8 in |
| Standard Approvals: | CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b |
| Warranty: | 2-Year Limited |
