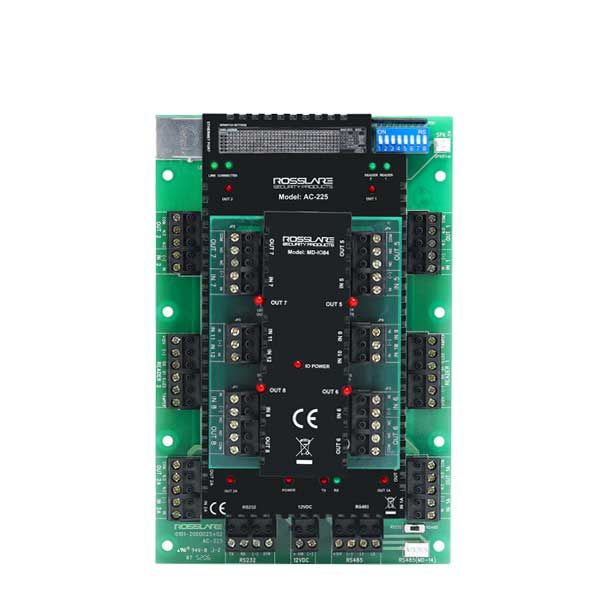

Rosslare - AC225IP - Expandable Networked Access Control - PCBA Only - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

Rosslare - AC225IP - Expandable Networked Access Control - PCBA Only - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

Rosslare

$565.62 USD
$611.64 USD $565.62 USD
Sale Sold out
Shipping calculated at checkout.

SLK-ROS-AC-225IP-PCBA

Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 2 reader scalable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in AC225 Systems. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.

Features:

  • Printed Circuit Board Assembly (PCBA) Only for AC225
  • Networked up to 1023 Panels
  • Networked up to 4092 Doors
  • Up to 30,000 users with access rights for every panel
  • Panel supports 1-door (In/Out) and 2-door (In/Out, In/In or Out/Out) configurations


Specifications:

Type: Printed Circuit Board Assembly
Readers: 2 reader ports
Output voltage: 12 VDC
Max. current: 245 mA
LED control output D0/D1, tamper input
Max Readers: With MD-D02: 4 reader ports
Inputs: 4 supervised, hi-impedance, inputs 8 or 12 supervised inputs when using MD-D02 or MD-IO84 expansion boards Max. voltage: 5 VDC
Outputs: 4 fully programmable, or  8 supervised outputs when using MD-D02 or MD-IO84 expansion boards 5 A, N.O. and N.C. relay outputs rated 5A @ 30 VDC
Interface: TCP / IP
TCP / IP:  Onboard RJ-45 connector
Speed Options: 9600, 19200, 57600, 115200 bps
Serial Ports: 10/100 Ethernet Port
Networking: Rosslare's AxTraxNG™ Server
Users: 30,000 active credentials (Card & PIN)
Event Log: 20,000 Events
Operating Voltage:  13.8 VDC 1.5 A from PS-33
Max Input Current: Standby: 120 mA. Maximum: 370 mA
Housing: Printed Circuit Board Assembly Only
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b
Warranty: 2-Year Limited
