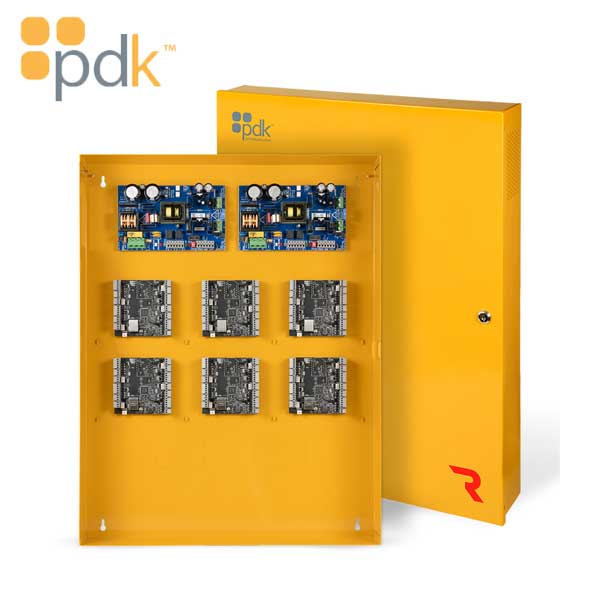

PDK - RED - Customizable High-Security Controller - Fully Equipped - Up to 24 Doors (Ethernet)

PDK - RED - Customizable High-Security Controller - Fully Equipped - Up to 24 Doors (Ethernet)

PDK

Regular price $2,054.58 USD
Regular price Sale price $2,054.58 USD
Sale Sold out
Shipping calculated at checkout.

SLK-PDK-RMAX

RED MAX Customizable High-Security Controller Door Controller

PDK’s Red™ Max controller is truly in a class of its own, coming fully equipped with two Altronix power supplies and two Red four-door expander boards. The Red Max is fully customizable with any Red expansion board, allowing for scalability and control of up to 24 doors from one enclosure. Expander boards are available in one-door, two-door, and four-door options. Each expander includes built-in Ethernet connectivity and self-discovery, simplifying IP configuration and functionality.

PN: RMAX

RED MAX Features

Fully Customizable
The Red Max is fully customizable with any Red expansion board, allowing for scalability and control of up to 24 doors from one enclosure.

Advanced Security
ProdataKey Red™ products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.

Power Monitoring
Equipped with two Altronix power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.

Plugn'Play Connectivity
All pdk Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device, no matter how large the job is.

Self Discoverable
The Red Max Expander boards will be automatically discovered by the Cloud Node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.

Automatic Updates
Experience future-proof access control that’s always up-to-date and protected with the latest security enhancements.



Specifications

 Connections: Red 4 Expander Connections: Removable Screw-down Terminals, Industrial-grade 2A Form-C Relays (4), Reader (4), Input A (4), Input B (4)
Red 2 Expander Connections: Removable Screw-down Terminals, Industrial-grade 2A Form-C Relays (2), Reader (2), Input A (2), Input B (2)
Red 1 Expander Connections: Removable Screw-down Terminals, Industrial-grade 2A Form-C Relays (1), Reader (1), Input A (1), Input B (1)
Communication Options: Ethernet
Environmental: Temperature: -4° ~ +140° F /-20° ~ +60° C
Humidity: 0 - 95% relative humidity non-condensing
Enclosure: Dimensions (W x H x D): 20.75” x 26.75” x 4.125”
Metal lockable security can (indoor use only)
Power: 12 VDC; Power readers and other door hardware using the built-in bus. 10A concurrent max on the bus. * 8 ah backup battery not included but is required to comply with UL 294.
Certifications FCC Compliance Statement: This device complies with Part 15 of the FCC rules.
Manufacturer’s Limited Warranty One to five-year warranty against defects in materials and workmanship. For full details, visit www.prodatakey.com/warranty


Package Contents:

  • Red Max Enclosure (1)
  • Can Lock (1)
  • Jumpers (16)
  • Diodes (8)
  • Altronix Power Supply (2)
  • Red 4 Controller Boards (2)



Data Sheet

Online Manual
