SLK-PDK-RED-R2
High-Security Two Door Controller
PDK’s RedTM 2 controller includes built-in Ethernet connectivity and self-discovery, simplifying ip configuration and functionality. Communication plug-and-play connection options are added by purchasing a Red WiMACTM wireless or PoE++ Module Kit. The Red 2 is equipped with OSDP functionality, an onboard power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
Model PN: R2 - Cloud Network Two Door Controller (Ethernet)
RED 2 Features
Each unit is equipped with a fully supervised power circuit that monitors the battery and overall controller health and even charges the battery. Users receive important system notifications via text and email.
Advanced Security -
ProdataKey RedTM products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
Power Monitoring - Equipped with an on-board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
Plug ‘n’ Play Connectivity - All PDK Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device no matter how large the job is.
Self-discoverable - The Red 2 will be automatically discovered by the Cloud Node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.
Module kits - Additional WiMAC and PoE++ plug-and-play connection kits can be added by purchasing the respective wireless or PoE kit. Plug the module into the PDK Red 2 board and it's ready to go.
System Scalability - Whether you need two doors or a thousand, the PDK Red 2 Controller gives you the flexibility to add more doors anytime, anywhere, on any device.
Specifications
| Connections: | Removable Screw-down Terminals Built-in Power Supply Industrial-grade 2A Form-C Relays Reader Input A and Input B |
| Communication Options: | Ethernet |
| Environmental: | Temperature: -4° ~ +140° F /-20° ~ +60° C Humidity: 0 - 95% relative humidity non-condensing |

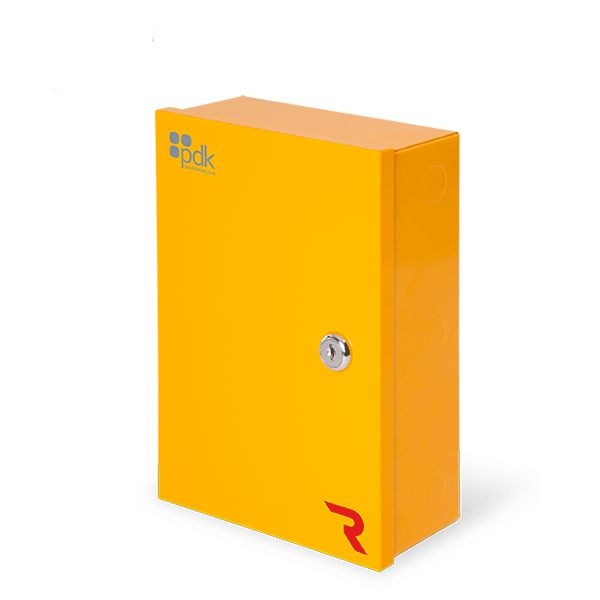

| Enclosure: | Dimensions (W x H x D) 10.4375” x 7.625” x 3” Metal lockable security can (indoor use only) |
| Compliance: | Conforms to UL 294 |
| Power: | 12V-24V DC Input 14 VDC 2A 28 watt class 2 wall-wort power supply (Input sup-ply to the board) Powers readers and other door hardware directly from the bus * Battery not included but a backup battery must be installed to comply with UL 294. |
| Manufacturer’s Limited Warranty | One to five-year warranty against defects in materials and workmanship. |
Package Contents -
- Red 2 controller
- Battery Leads (1)
- Jumpers (4)
- Diodes (2)
- Labels (2)
- Enclosure Screws (2)
- QuickStart Guide (1)
