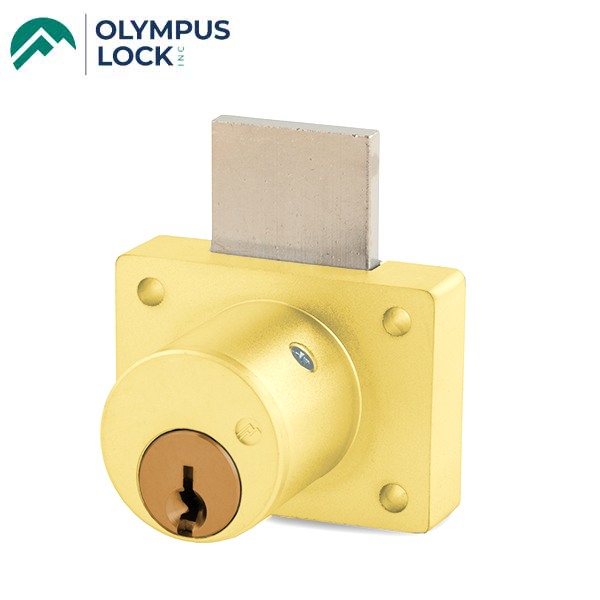

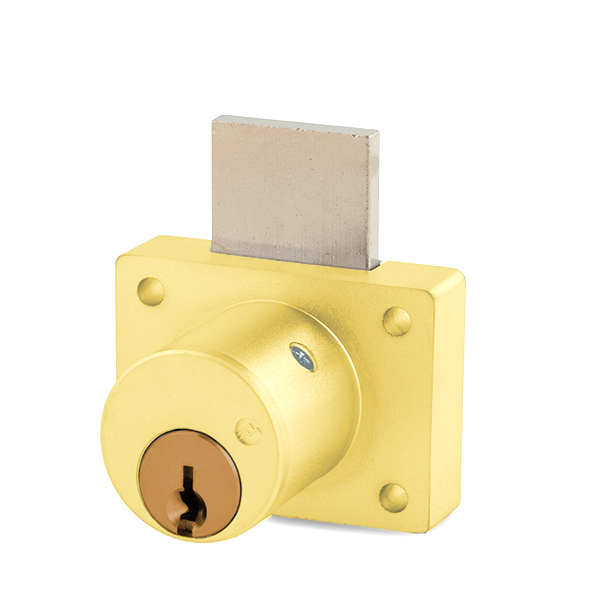

Olympus - 800S - Cabinet Drawer Deadbolt Lock - S Series Schlage C Keyway - Optional Cylinder Length - Polished Brass - Optional Keying - Grade 1

Olympus - 800S - Cabinet Drawer Deadbolt Lock - S Series Schlage C Keyway - Optional Cylinder Length - Polished Brass - Optional Keying - Grade 1

Olympus

$98.28 USD
$112.32 USD $98.28 USD
Sale Sold out
Shipping calculated at checkout.
Cylinder Length
Keying

OLY-800S-US3XXXX (Regular Bolt)

S Series Schlage C Keyway Drawer Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • S Series Schlage C Keyway
  • Cabinet drawer deadbolt lock
  • Easily rekeyable via set screw cylinder release mechanism
  • Passed ANSI/BHMA A156.11 Grade 1 performance requirements
  • Cylinder length: Optional 1-1/8" or 1-3/8"
  • Barrel diameter: 1-1/8"

Specifications:

Function Deadbolt drawer lock key retaining
Cylinder S Series: Schlage C Keyway Deadbolt
Keyed Alike KA 101,102 or O-BIT
Cylinder Length
 Optional 1-1/8" or 1-3/8"
Barrel Diameter 1-1/8"
Handing
 Inverted or Vertical option
Function Key removable in locked or unlocked position
Body Zinc Die Cast
Finish Polished Brass
Includes For 1-1/8"barrel length locks:
- 10-350 plastic spacers (qty 2)
- 10-054 1/4" plastic bar strike
- 10-055 1/2" plastic bar strike
For 1-3/8"barrel length locks:
- 10-054 1/4" plastic bar strike
Certifications Passed ANSI/BHMA A156.11 Grade 1
performance requirements. Equivalent to
E07121 (700S) / E07041 (800S).
