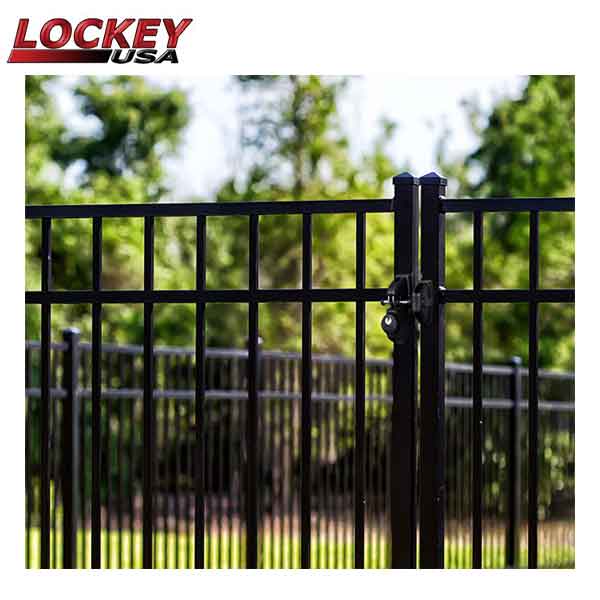

The LockeyUSA SUMO SGL-SS is a single sided safety gravity gate latch for pedestrian gates. It features a latching mechanism with 2 independent hooks that eliminates jamming. This gravity latch can be easily mounted on metal, vinyl, and wood gates along with being vertically and horizontally adjusted. The SGL-SS is manufactured from stainless steel, aluminum and non-rusting fiber-reinforced polymers and are backed with a limited lifetime warranty. Secure your gate with the LockeyUSA SUMO SGL-SS. The SGL-SS is a pull-to-open action that eliminates lever handles and can be locked or unlocked with the use of a key which completely prevents access to the gate. With the single sided gravity latch there is only access to open the gate from the pull side.
Features
- Heavy duty gravity gate latch
- Advanced catching system
- 2 independent latching hooks
- Pull-to-open
- Dependable, built to last
- Easy installation and adjustment
Specifications
| DIMENSIONS | 3.75 x 1.5 x 5.75 inches |
| MATERIALS | Non-rusting: polymers, aluminum, stainless steel |
| TYPE OF GATE MATERIAL |
Metal; Vinyl; Wood |
| ALIGNMENT |
Vertical / Horizontal adjustment |
| CYLINDER | Single - Schlage 6 pin keyway; Re-Keyable |
| KEYS | 2 keys provided |
| MIN. POST SIZE | 1” |
| MIN. GATE GAP |
1 1/2” |
| MAX. GATE GAP | 1 1/4” |
| IDEAL GATE GAP | 3/4” |
| FINISH |
Black |
| WARRANTY |
Limited Lifetime Warranty |
Downloads
Installation InstructionsSpec Sheet
