KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)
KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)
KERISYS
Regular price
$131.89 USD
Regular price
$158.27 USD
Sale price
$131.89 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-KRS-KPS-3
Item Number: 7921

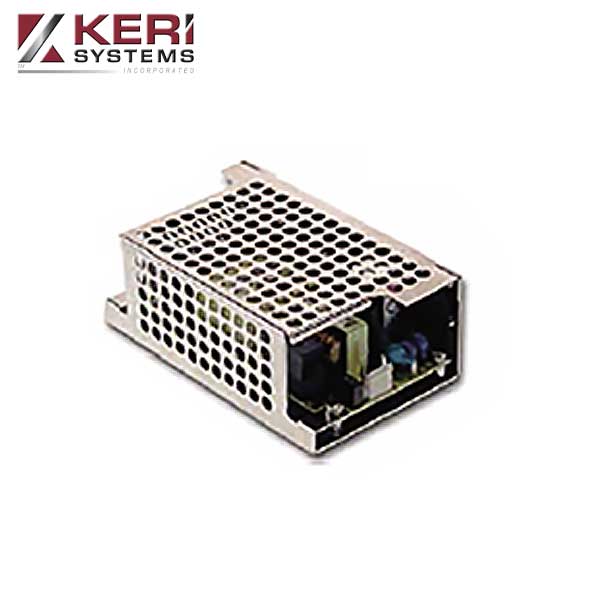

Keri’s KPS-3 Power Supply provides an open frame power solution, with an ultra compact footprint, providing your design with more space and efficiency. This is the power supply with full enclosure and power cables
Specifications
| Size |
With enclosure: 205*180*90mm Without enclosure: 103.4*62*37mm |
| Weight | With enclosure: .95lbs (.42kg) Without enclosure: 3.65lbs (1.66kg) |
| Output | DC Voltage: CH1 - 13.8V, 2.8A, CH2 (Battery) – 13.8V, 1.5A Current Range: CH1 – 12-15V, CH2 – N/A Power: 59.34W Voltage Tolerance: +/- 1.0% |
| Input | Voltage Range: 90-264VAC Frequency Range: 47-63Hz Effiency: 84% AC Current: 1.6A/115VAC, 1A/230VAC Inrush Current: Cold Start 30A/115VAC, 60A230VAC |
| Protection | Overload: 105-150% Rated Power Protection Type: Hiccup mode, recovers automatically after fault condition is removed Over Voltage: CH1 – 14.49 ~18.63V Protection Type: Hiccup mode, recovers automatically after fault condition is removed Battery Cut Off: 10.5 +/- 0.5V |
| Environment | Working Temp: -20 ~ +70 deg C Working Humidify: 20~90% RH non-condensing Storage Temp. Humidity: -20 ~ +85 deg C, 10~95% RH Temp Coefficient: ± deg C 0.03%/ (0~50 ) on CH1 output Vibration: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axis |
| Safety & EMC | TUV EN60950-1 approved Withstand Voltage: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH EMC Emission: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A |
| Enclosure | Enclosure Included |
| Protections | Short circuit / Overload / Over voltage |
| Battery | Battery low protection / Battery reverse polarity protection by fuse |
| Alarm | Alarm signal for AC OK and Battery Reverse Low |
| Cooling | Air Convection |
| PreTesting | 100% full load burn-in test |
| Warranty | 2 year manufacturer warranty |
