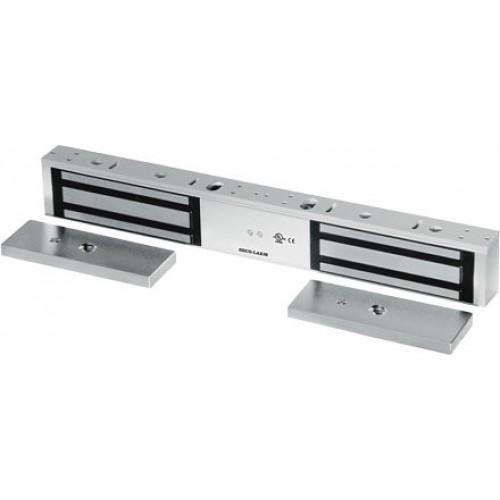

Seco-Larm - Double Door Maglock - 1.200 lb Holding Force per Door - Sensor Status LED - UL Listed

Seco-Larm - Double Door Maglock - 1.200 lb Holding Force per Door - Sensor Status LED - UL Listed

Seco-Larm

Regular price $386.88 USD
Regular price $452.95 USD Sale price $386.88 USD
Sale Sold out
Shipping calculated at checkout.

SLK-SLM-E-941DA-1K2P
Item number: 6271

  • Anodized aluminum housing (US 28)
  • 12 or 24 VDC (selectable)
  • No residual magnetism
  • Adjustable mounting bracket
  • MOV surge protection
  • Complete mounting hardware for typical installations
  • Detachable face plate
  • UL and ULC listed
  • CE listed
  • RoHS compliant
  • LIFETIME LIMITED WARRANTY!
  • Bond sensor output: 3A@12VDC
  • Built-in dual-color status LED and bond sensor to show locking status:
    • Green: Door is closed and locked
    • Red: Door not closed and/or locked
    • Off: Door in use / no power
    • Off: Door in use / no power

Holding Force 1,200-lb (545kg) per door
Operating Voltage 12 or 24 VDC±10%
Current Draw 500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total)
Operating Temperature 14º~131º F (-10º~55º C)
Certification UL, ULC, CE
Electromagnet Dimensions 21"x1-5/8"x2-5/8" (536x42x67 mm)
RoHS Compliance Yes
Armature Dimensions 7-1/4"x5/8"x2-3/8" (185x16x61 mm)
Case Shipping Weight 43-lb (19.5kg)
Weight 21-lb (10kg)
Case Quantity 2 pcs
Bond Sensor Yes
Status LED Yes
