Command Access - PWM202HO - Power Booster Module - Solenoids - 18ga Wire - 24-35 VDC

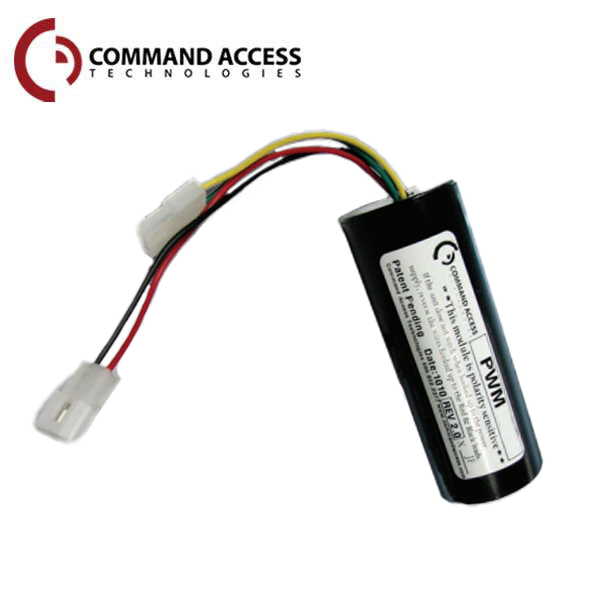

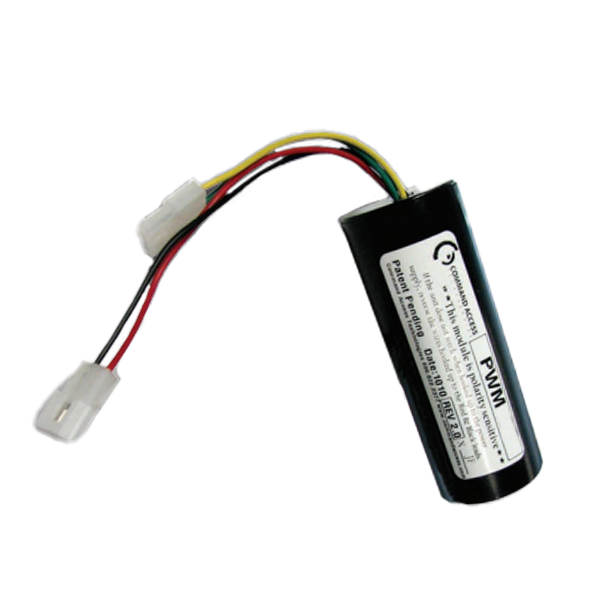

The PWM202HO models are power booster interface modules that fit inside of an
electric latch pullback exit device. When energized by a 24VDC power source, they provide a local high current surge to the EL exit device to pull back the latchbolt. The PWM202HO utilizes pulse width modulation (PWM) to control the holding current in the single coil solenoid applications. Since the unit is located inside the exit device or the hinge jamb, the typical wire run and power supply limitations are improved significantly by the PWM202HO.

Features:

• Allows a wire run from the power supply to the exit device of up to 700’ with 18/2 wire

• Compatible with most 24VDC 1.5A or greater power supplies

• Solid-state design with high quality components makes for years of trouble-free operation

• Patented Technology

• No hassle 3-Year Warranty

Specifications:

Downloads:

• Spec Sheet
