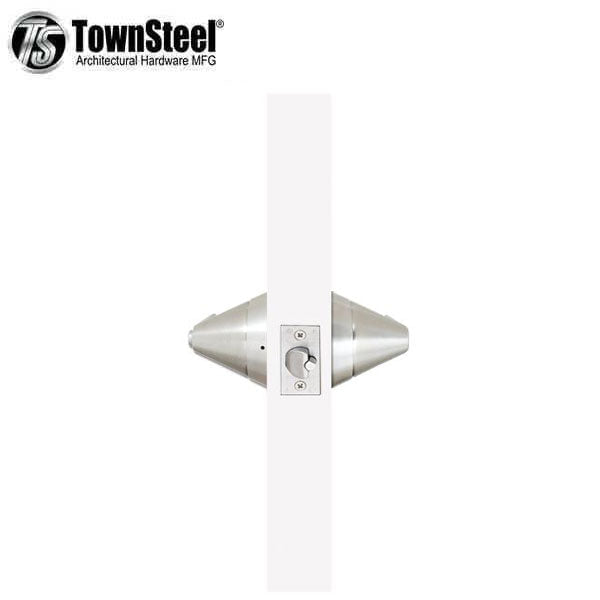

TownSteel - TRX-L - Ligature Resistant Cylindrical Lockset - Heavy Duty - Storeroom - Fire Rated - Stainless Steel - Grade 1
TownSteel - TRX-L - Ligature Resistant Cylindrical Lockset - Heavy Duty - Storeroom - Fire Rated - Stainless Steel - Grade 1
TownSteel
Precio habitual
$618.07 USD
Precio habitual
$863.20 USD
Precio de oferta
$618.07 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
The TRX-L is an ANSI Grade 1 sectional cylindrical lock with a ligature-resistant lever. TRX-L is suitable for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. This product is equipped with a ligature-resistant stainless steel lever and tamper-resistant mounting screws. The TRX-L can be mounted on both a wood and metal door.
Features:
- Ligature-resistant stainless steel lever
- Keyed
- Storeroom Function
- ANSI/BHMA Grade 1, UL Listed
- Meets requirements of the Buy American Act
- Meets guidelines of the Americans with Disabilities Act
Specifications:
| Application | For facilities housing patients in risk |
| Door Thickness | 1-3/4" |
| Backset | 2-3/4″ |
| Function | F86 - Storeroom |
| Handing | Non-Handed |
| Latch bolt | Stainless steel, 1/2″ projection |
| Faceplate | Stainless steel 1-1/8" |
| Keying | Schlage “C” keyway, brass 6 pin cylinder |
| Strike | Stainless steel, ASA, 1-1/4″ |
| Mounting | Through-bolt, tamper resistant mounting screws, for wood and metal door |
| Finish | 630 Stainless Steel |
| Fire rated | UL 10C Listed 3‐Hour Fire Rating |
| Certifications | ANSI/BHMA Certified A156.2‐2011 Grade 1 Certified Meets requirements of the Buy American Act Meets guidelines of the Americans with Disabilities Act |
| Manufacturer Warranty | 10-year manufacturer limited warranty |
