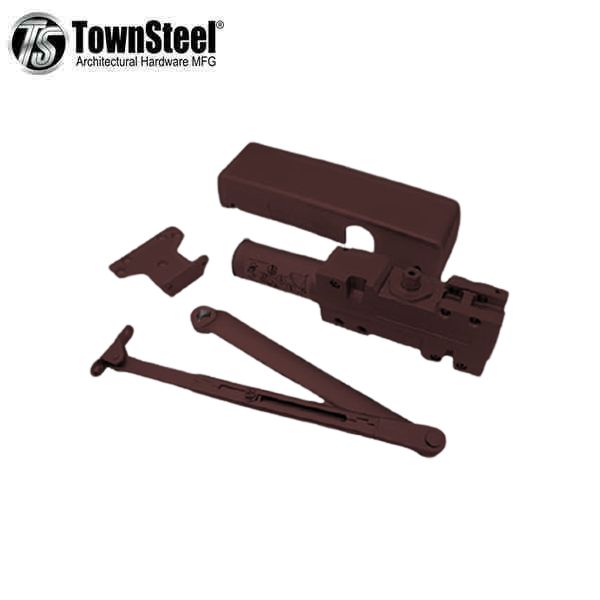

TownSteel - TDC40 - Commercial Door Closer - Hold to Open Arm - Cast Iron w/ Duranodic Bronze Finish - Grade 1
TownSteel - TDC40 - Commercial Door Closer - Hold to Open Arm - Cast Iron w/ Duranodic Bronze Finish - Grade 1
TownSteel
Precio habitual
$186.50 USD
Precio habitual
$470.60 USD
Precio de oferta
$186.50 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
The TDC 40 is a heavy-duty, cast iron body, grade 1 door closer that is ANSI/BHMA certified and UL rated.
More Information Below
Specifications
| Body |
Heavy-duty cast iron body |
| Handing |
Non-handed |
| Function | Friction Hold-Open |
| Rack and Pinion |
Precision rack and pinion construction |
| Arm |
Regular Arm , Standard |
| Installation | Tri-Style installation, includes hardware and brackets to allow for regular, top jam and parallel arm installation |
| Spring Power |
Adjustable spring power from size 1 to size 6, factory present size 3 |
| Latch Valve |
Adjustable standard |
| Sweep Valve |
Adjustable standard |
| Back Check Valve |
Adjustable standard |
| Delayed Action Valve |
No Delayed Action |
| Fluid | All weather fluid, allowing door closer to perform in temperatures ranging from -31°F to 140°F |
| Needle Bearing |
Standard for higher efficiency |
| Piston | 1-1/2″ (38mm) diameter piston 5/8″ (16mm) diameter pinion 2-5/16″ (58mm) projection |
| Maximum Door Opening |
Regular arm 180°, Parallel arm 180°, Top jamb 180° |
| Certifications |
ANSI/BHMA - A156.4 Grade 1 Certified UL - UL & ULC Listed BAA - BAA model meets guidelines of the Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
