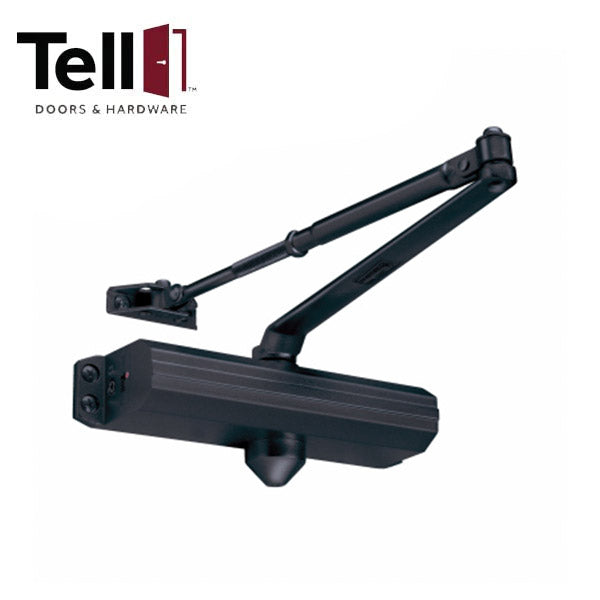

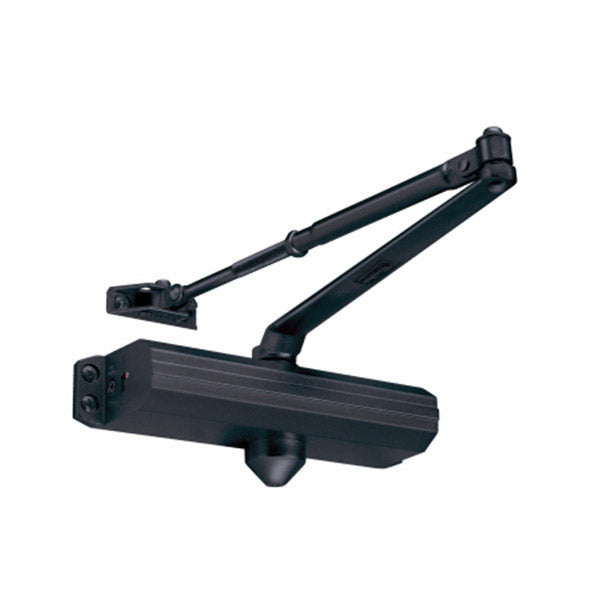

TELL - 600 Series - Heavy Duty Commercial Door Closer - Parallel Arm Bracket - Adjustable 1-4 - No Cover - Backcheck - Matte Black
TELL - 600 Series - Heavy Duty Commercial Door Closer - Parallel Arm Bracket - Adjustable 1-4 - No Cover - Backcheck - Matte Black
Tell
Precio habitual
$150.15 USD
Precio habitual
$187.69 USD
Precio de oferta
$150.15 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
The 600 Series door closer is a grade 1, heavy duty cast aluminum surface applied door closer, designed for interior commercial use and comes with hardware for all installation applications. This closer complies with ANSI A156.4, UL/ULC listed up to three hours fire rated. Adjustable 1-4 Sizes.
Specifications:
| Performance | Complies with ANSI A156.4 Grade 1, 2,000,000 cycles UL/ULC listed up to 3 hours fire rated |
| Chassis | Cast aluminum |
| Handing | Non-handed |
| Mounting | Tri-Pack – regular, top jamb and parallel arm applications |
| Arm | Forged steel Accommodates reveals up to 3 1/4” Adjustable extension arm |
| Spring Power |
Adjustable 1-4 Size |
| Backcheck | Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door |
| Valves | Adjustable, independent Non-critical – sweep and latch Consistent closing speeds |
| Fasteners | Metal screws included for hollow metal and aluminum mounting applications Wood screws included for wood door mounting applications Thru-bolts optional |
| Cover | High impact plastic streamlined cover |
| Door Range |
Up to 180 degrees |
| Door Preparation |
9-1/16” horizontal x 3/4” vertical 4-Hole mounting locations Retrofits traditional closer |
| Warranty | Lifetime limited |
