Seco-Larm - Single Door Maglock - 300 lb Holding Force - UL Listed
Seco-Larm - Single Door Maglock - 300 lb Holding Force - UL Listed
Seco-Larm
Precio habitual
$125.16 USD
Precio habitual
$250.30 USD
Precio de oferta
$125.16 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-SLM-E-941SA-300RQ
Item number: 6284
-
Perfect for cabinets, small enclosures, or
pedestrian gates - Holding force: 300-lb (136kg)
-
12
VDC operation - Stainless steel housing
- No residual magnetism
- MOV surge protection

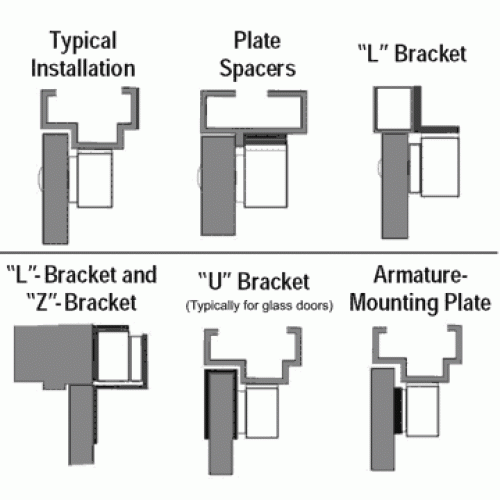

- “L” (E-941S300R/LQ), “Z” (E-941S300R/ZQ), and “U” (E-941S300R/UQ) Brackets available for easy mounting
- Selectable 12/24 VDC operation
| Holding Force | 300-lb (136kg) |
| Operating Voltage | 12/24 VDC ±10% |
| Current Draw | 420mA@12VDC, 210mA@24VDC |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Electromagnet Dimensions | 7-7/8" x 1-3/8" x 1" (200 x 35 x 24 mm) |
| RoHS Compliance | Yes |
| Armature Dimensions | 6" x 3/8" x 1-1/4" (152 x 10 x 32 mm) |
| Weight | 3-lb 5-oz (1.5kg) |
| Case Quantity | 10 pcs |
