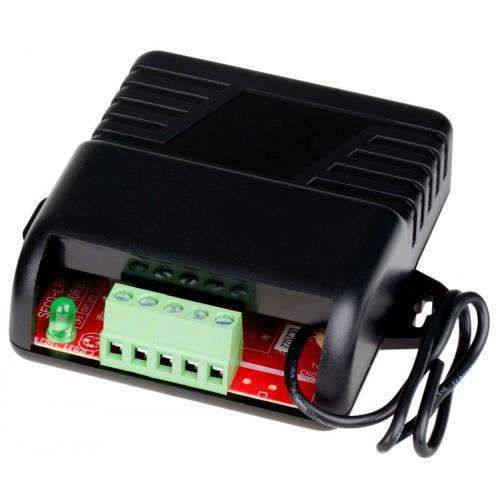

Seco-Larm - 1 Channel RF Receiver - 11~24 VAC/VDC - 315MHz - Relay Output

Seco-Larm - 1 Channel RF Receiver - 11~24 VAC/VDC - 315MHz - Relay Output

Seco-Larm

Precio habitual $35.95 USD
Precio habitual $73.69 USD Precio de oferta $35.95 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-SLM-SK-910RBQ
Item number: 6312

  • Compatible with all ENFORCER 315MHz transmitters
  • Use to control garage door opener, house lights, alarm control panel, or other devices via remote control
  • 10A @ 24VDC per channel, NO/NC/COM
  • Frequency 315MHz
  • This revolutionary receiver incorporates:
  1. Hi-Q SELECTIVITY and a CODING IC for rejecting unwanted RF signals.
  2. HIGHER SENSITIVITY for greater operating distances.
  3. UNSURPASSED ANTENNA MATCHING CAPABILITIES so the receiver is less affected by how and where mounted.
  4. GREATER TUNING STABILITY so the receiver's frequency remains unaffected by shock and vibration.
  • LED indicates RF reception, learn mode entered, transmitter learned, memory cleared
  • Mode switch for easy transmitter learning
  • Learns up to 15 transmitters
  • 5 Output modes (programmable):
    -- 4-Second momentary,
    -- 1-Second momentary,
    -- Toggle,
    -- Validity: receiver outputs for as long as the transmitter button is pressed,
    -- Latch
  • Screw terminals for simple connection
  • Accepts ENFORCER fixed code or CODEBUMP transmitters



Type WIRELESS - Single-Channel RF Receiver
Operating voltage 11~24 VAC/VDC
Range Up to 500' (150m) with SECO-LARM transmitter. Range will vary.
Relay Rating Form C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel
Current Draw 8mA@12VDC (standby), 30mA/channel @12VDC (activated)
Extended Range Antenna Compatible Yes (SK-91ERSD)
Connectors 5 Quick-connect screw terminals (+, -, with NO/NC/COM)
Dimensions 3-1/8" x 2-9/16" x 1" (80 x 65 x 25 mm)
