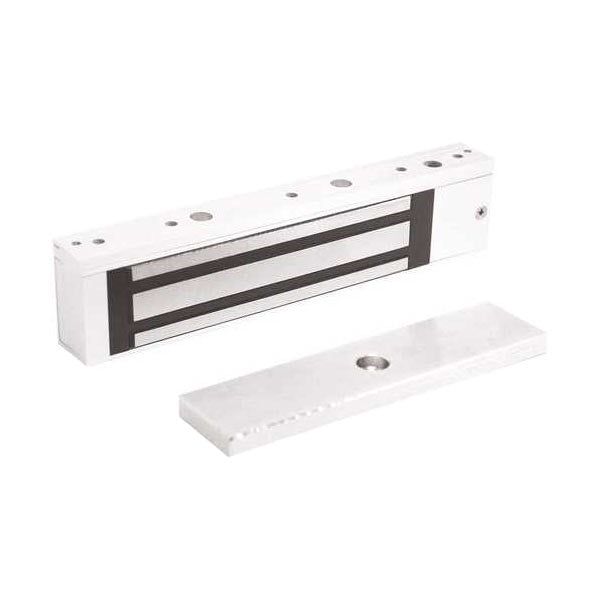

SDC - E1200 - Single Magnetic Lock - Surface Mount - 1200lbs. - 12/24VDC - Satin Aluminum - Grade 1
SDC - E1200 - Single Magnetic Lock - Surface Mount - 1200lbs. - 12/24VDC - Satin Aluminum - Grade 1
SDC
Precio habitual
$336.66 USD
Precio habitual
$471.82 USD
Precio de oferta
$336.66 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-SDC-E1200-628
The SDC E1200 is a fully featured magnetic lock with a non-obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. The E1200 Commercial Series full featured magnetic lock is made of an epoxy sealed satin stainless steel housing and utilizes the same mounting template as major competitive brands. They are easy to install with the included interlocking quick mount assembly.
Features:
- Interlocking quick mount assembly
- Uniform Design & Installation
- Choice of self drilling and tapping mounting
screws or machine screws - Field selectable dual voltage
- Voltage and current spike protection
- Instant release anti-residual magnetism
circuitry - Wire access chamber with terminal block
- Door position status (DPS)
- Bond alert status (BAS)
- Visual status indicator (LED)
Specifications:
| Housing: | Aluminum |
| Lock Function: | Electromagnetic Lock |
| Holding Force: | 1,200 lbs |
| Voltage: | 12/24VDC, field selectable |
| Current: | 260 mA @ 24 VDC 505 mA @ 12 VDC |
| Dimensions: | 10.5 (L) x 2.875 (H) x 1.625 (D) in |
| Armature Dimensions: | 7.3125 (L) x 2.375 (H) x 0.625 (D) in |
| Finish: | Satin Aluminum - 628 |
| Certifications: | Grade 1, UL Listed |
| Warranty: | 5 Year Warranty |
