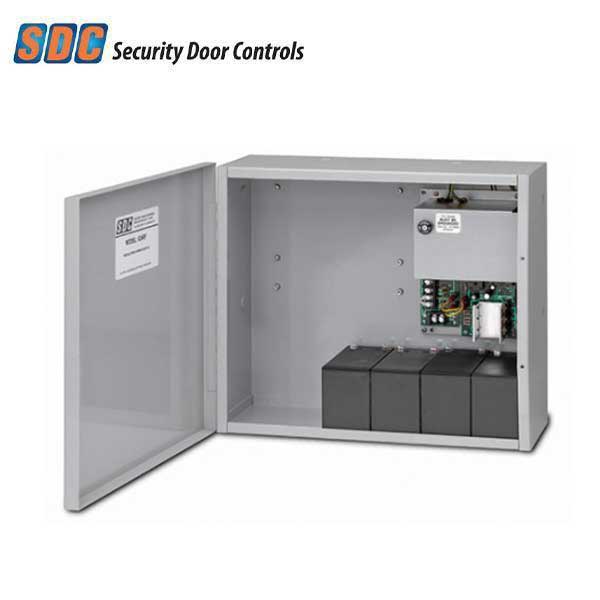

SDC - 634 - Low Voltage Power Supply - 16" x 14" Cabinet - 4 Amps - 12/24VDC - Battery Charger - Fire Rated

The SDC 634RF Power Supplies have been developed specifically to support electric locks and access controls. The high performance, heavy-duty 4 Amp circuitry is ideal for inductive loads and multi-door applications. The modular design is built around several different application control modules to meet your specific needs for virtually any electric lock system. Documentation is provided to ensure a well organized installation for individual or multi-door systems that may include locking devices, access controls, station controls and consoles for remote control, annunciation and auxiliary emergency release interface.

Features:

• Field selectable 12 or 24VDC, regulated and filtered
• Modular design
• Fire/Emergency release input
• Field selectable manual reset input
• Auto resetting output circuit protection
• Isolated 13.5/27VDC battery charger
• Isolated Charging Circuit
• Low battery disconnect
• Emergency release input
• Field selectable UBC & California compliant manual power up
• Input, output and battery status LED's
• 16” W x 14” H x 6.5” D enclosure
• Choice of output and door control modules




Specifications:

Downloads:

• Spec Sheet
• Installation Guide
