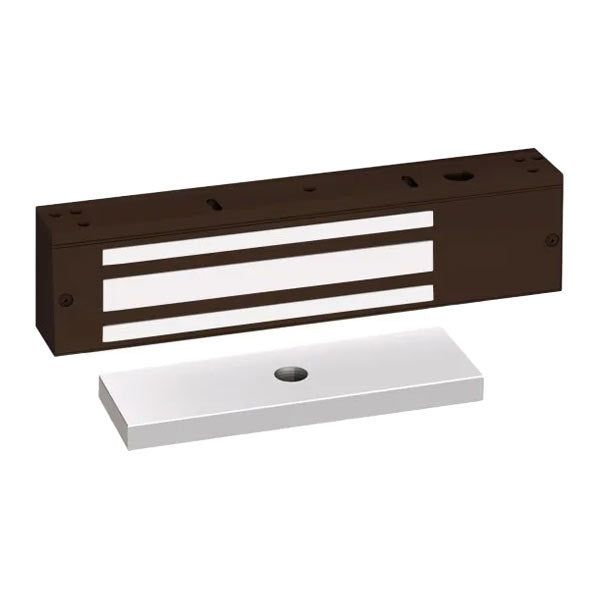

SDC - 1581X - Single Magnetic Lock - Surface Mount - 650lbs. - 12/24VDC - Dark Bronze - Grade 1

SDC - 1581X - Single Magnetic Lock - Surface Mount - 650lbs. - 12/24VDC - Dark Bronze - Grade 1

SDC

Precio habitual $559.23 USD
Precio habitual $660.65 USD Precio de oferta $559.23 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-SDC-1581X-710

The SDC 1500 series EMLocks® are easy to stock, install, upgrade, and maintain. They include a lifetime warranty and have 650lbs of holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxyless design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.

Features:

  • Comes with 650lb Holding Forces
  • Autosensing 12/24 VDC Voltage Input
  • Uniform Design & Installation
  • Identical Housing, Template & Accessories
  • Quick Mount Assembly
  • Modular Design & Modular Field Upgrade Kits (Sold Separately)
  • Field Upgradeable Without Removing From Frame
  • ANSI/BHMA Grade 1 Compliant
  • UL 294 : Standard for Access Control System Units


Specifications:

Construction: Solid Metal
Lock Function: Electromagnetic Lock
Holding Force: 650 LB / 295 KG
Voltage: 12/24VDC Voltage Sensing Input
Current: 220mA @ 24VDC; 440mA @ 12VDC
Door Position Sensor: SPDT Dry, 250 mA @ 30VDC
Dimensions: 8-3/4”L x 2-1/8”H x 1-1/4”D
Finish: Dark Bronze Anodized - 710
Certifications: ANSI/BHMA Grade 1 Compliant. UL 294 Listed
Warranty: Manufacturer Lifetime Warranty



Downloads:
