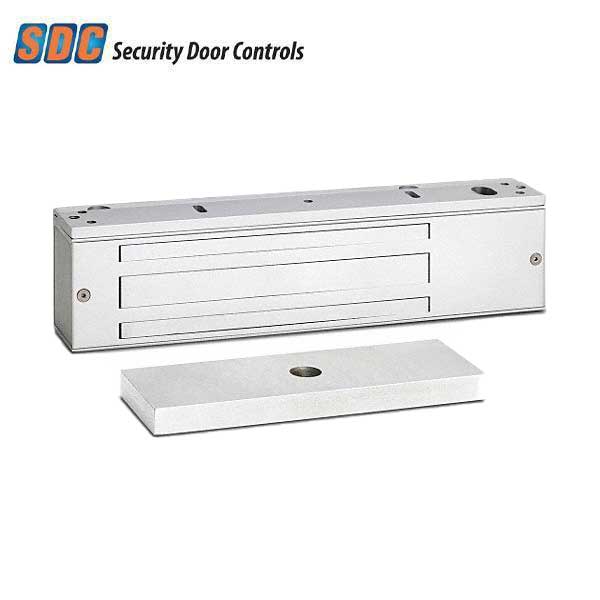

SDC - 1571VD - Single Electromagnetic Lock - Door Position Sensor - Surface Mount - 1200lbs. - 12/24VDC - Aluminum - Fire Rated - Grade 1
SDC - 1571VD - Single Electromagnetic Lock - Door Position Sensor - Surface Mount - 1200lbs. - 12/24VDC - Aluminum - Fire Rated - Grade 1
SDC
Precio habitual
$475.15 USD
Precio habitual
$497.64 USD
Precio de oferta
$475.15 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
The SDC 1500 series EMLocks® are easy to stock, install, upgrade, and maintain. They include a lifetime warranty and have 1200lbs of holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxyless design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.
Features:
- Comes with 1200lb Holding Forces
- Door position sensor that Indicates door open and door closed
- Autosensing 12/24 VDC Voltage Input 3 Watt Power Saver
- Uniform Design & Installation
- Identical Housing, Template & Accessories
- Quick Mount Assembly
- Field Upgradeable Without Removing From Frame
- ANSI/BHMA Grade 1 Compliant
- UL, CSFM, MEA Listed
Specifications:
| Construction: | Solid Metal |
| Lock Function: | Electromagnetic Lock |
| Holding Force: | 1200 LB / 544 KG |
| Voltage: | 12/24VDC Voltage Sensing Input. 3 Watt Max |
| Current: | 125mA @ 24VDC; 250mA @ 12VDC |
| Dimensions: | 11”L x 2-7/8”H x 1-5/8”D |
| Door Position Status (DPS): | SPDT |
| Finish: | Satin Aluminum - 628 |
| Fire Rated: | Positive Pressure Fire Tests of Door Assemblies |
| Certifications: | ANSI/BHMA Grade 1 Compliant. UL, CSFM, MEA Listed, UL 10C |
| Warranty: | Manufacturer Lifetime Warranty |
