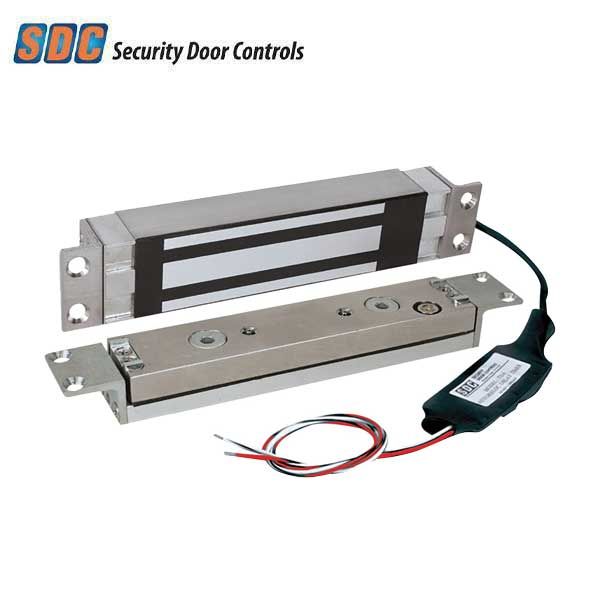

SDC - 1562 - Mortise Shear Magnetic Lock - Concealed - External Electronics - 2000lbs. - 12/24VDC - Grade 1

SDC - 1562 - Mortise Shear Magnetic Lock - Concealed - External Electronics - 2000lbs. - 12/24VDC - Grade 1

SDC

Precio habitual $953.24 USD
Precio habitual $1,151.42 USD Precio de oferta $953.24 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-SDC-1562ITCM

SDC HiShear® is a high security, failsafe locking mechanism with superior appearance. The patented HiShear® electromagnetic lock design incorporates a “floating” armature assembly and special alloy steel locking “tabs” on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors. HiShear® magnetic locks are ideal for use on commercial grade hollow metal and wood doors and metal frames and Herculite doors with top rails. Includes a standard mounting kit.

Features:

  • Lateral and Vertical Alignment Adjustment
  • External Electronics
  • Lateral adjustment of alloy steel shear tabs
  • Innovative floating assembly
  • Noise dampeners for quieter operation
  • Door Static Sensor
  • Field Adjustable Shear Stops
  • Auto Sensing 12/24VDC Input
  • ANSI/BHMA Grade 1 Compliant
  • BHMA Certified Holding Force
  • UL, CSFM, MEA Listed


Specifications:

Construction: Solid Metal
Lock Function: Shear Electromagnetic Lock
Mounting Depth:  1-¼"
Armature Included:
Standard mounting armature kit for aluminum and hollow metal doors with ⅞" to 1⅛" deep top channels, wood doors and factory prepared hollow metal flush edge doors.
Door Thickness: 1¼" to 1½" frames
Holding Force: 2000 LB / 907 KG
Voltage: 12/24VDC Voltage Auto Sensing Input
Current: 650/350mA @ 12/24VDC
Lock Dimensions: 8"L x 1-1/2"W x 1-1/4"D
Armature Dimensions: 8"L x 1-1/2"W x 7/8"D
Certifications: ANSI/BHMA Grade 1 Compliant. UL, CSFM, MEA Listed
Warranty: 5-Year Manufacturer Warranty



Downloads:
