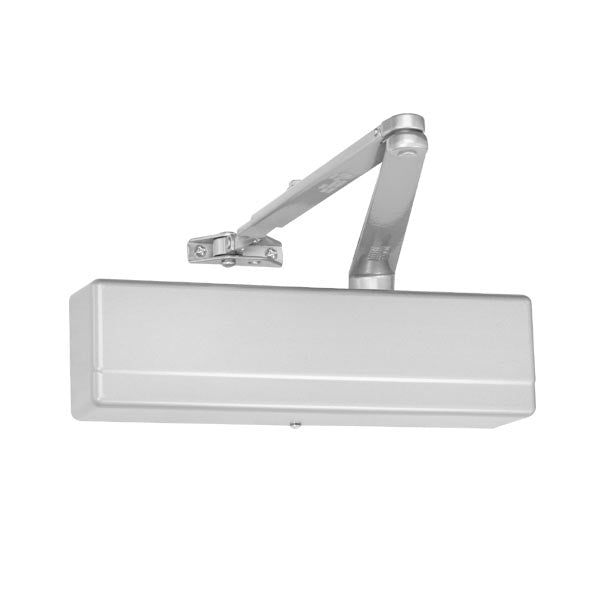

Sargent - 1431 - Powerglide Door Closer w/ UO - Universal Standard Arm Package - EN - Sprayed Aluminum Enamel - Grade 1

Sargent - 1431 - Powerglide Door Closer w/ UO - Universal Standard Arm Package - EN - Sprayed Aluminum Enamel - Grade 1

Sargent

Precio habitual $471.90 USD
Precio habitual $566.28 USD Precio de oferta $471.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-SRG-1431-UO-EN

Featuring heavy-duty construction for superior strength and wear resistance, the Sargent 1431 Series Powerglide Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With a full complement of arm types and front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.

Features

  • Exceeds 25 million cycles
  • Universal Handing
  • Sprayed Aluminum Enamel finish
  • Full rack and pinion construction
  • Self sticking templates supplied for most applications
  • 1-1/2" diameter piston for superior door control
  • Closing speed, latching speed and backcheck shall be controlled by key operated valves
  • UO - Universal Standard Arm Package - Contains Arms & Brackets to install in Standard, Top Jamb, and Parallel applications
  • High impact non-corrosive plastic covers with two machine screws standard
  • Adjustable spring power allows 1431 closers a size range of 1 through 6
  • UL/cUL listed for use on fire rated doors


    Specifications

    Construction Heavy Duty Aluminum Alloy
    Function Door Closer
    Interior or Exterior Universal
    Handing Universal
    Finish EN - Sprayed Aluminum Enamel
    Door Width 24 - 48"
    Diameter Piston 1-1/2"
    Projection from Wall 2-1/4"
    Application
    Standard, Top Jamb, Parallel
    Arm Type UO - Universal Standard Arm Package - Contains Arms & Brackets to install in Standard, Top Jamb, and Parallel applications
    Fasteners Machine Screws and self tapping screws provided for closer and arm
    Max. Door Opening 120° Standard
    180° with alternate mounting or corner bracket
    ADA Meets ADA requirements in all applications, except Push Side Track application
    Fire Rating UL 10C listed for positive pressure fire test
    Certifications Certified ANSI/BHMA A156.4 Grade 1
    Warranty 30-Year Limited Manufacturer Warranty
