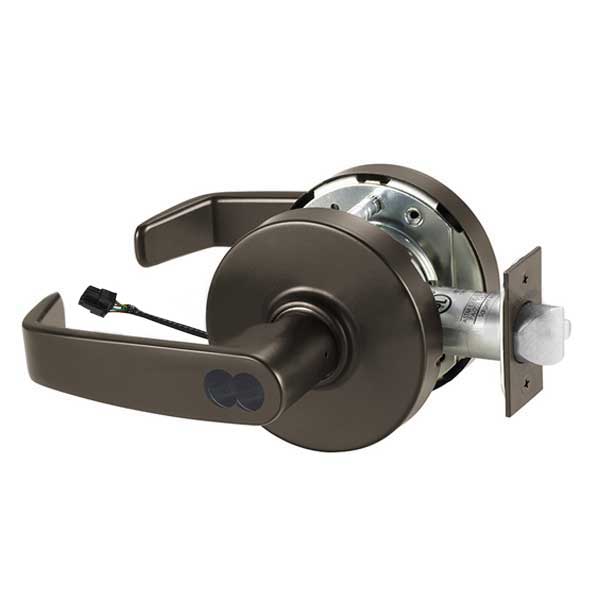

Sargent - 10G71 - Electromechanical Cylindrical Lock - L Rose / L Lever - Fail Secure - SFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 10G71 - Electromechanical Cylindrical Lock - L Rose / L Lever - Fail Secure - SFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent
Precio habitual
$868.30 USD
Precio habitual
$1,007.98 USD
Precio de oferta
$868.30 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-SRG-28-70-10G71-LL-24V-10BE
The SLK-SRG-28-70-10G71-LL-24V-10BE is a heavy duty electrified cylindrical key-in-lever handle lockset exceeds by nine times the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.
Features
- 10G71: Power off, locks outside lever
- Deadlocking latch
- Key retracts latch
- Inside lever always allows egress
- Voltage requirements: 24VDC Regulated; always specify voltage
250mA at 24VDC
Provided with ElectroLynx® 8-Pin Connector - 2 keys included
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 71 : Electromechanical Fail Secure |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm) |
| Strike: | 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option) |
| Latch | Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option) |
| Bolt Projection: | 1/2" |
| Stile: | 4-1/2" |
| Power | Hard Wired |
| Operating Voltage | 24VDC |
| Amp Draw | 250mA |
| Rose & Lever: | Standard L Rose and L Lever |
| Cylinder: |
Brass, 6 pin, LA keyway standard (not included) |
| Finish: | 10BE - Dark Oxidized Satin Bronze |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 7-Year Manufacturer Warranty |
Downloads
