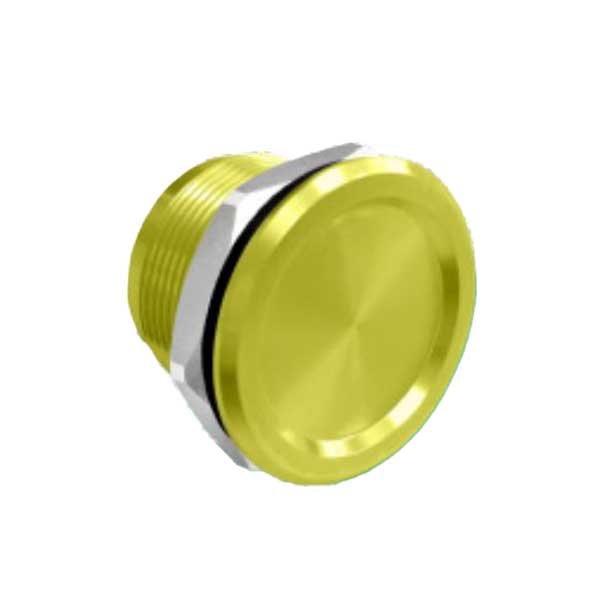

Rosslare - PX-13G - Piezoelectric Switch - 0-30 VDC - IP68 - Gold

SLK-ROS-PX-13G

Rosslare's PX-13 is a general purpose high-performance 22-mm panel-mounted normally open (N.O) piezoelectric switch suited for long-life and rugged-use applications. Made from AL6061 aluminum alloy material with Type ii anodization. The PX-13 requires no external power source to operate; it is anti-vandal, water-resistant, and weather-resistant, and can be operated with fingers, gloves, and through elastomeric overlays. The piezoelectric switches are compatible with Rosslare’s controllers, security systems, and many third party systems.

Features

• Easy to install and use
• Supports a wide range of switch voltages from 0 to 30 VDC
• Piezoelectric technology allows sensing actuation within a solid metal enclosure, making the devices rugged and waterproof; meets IP68
• Fully-potted design prevents penetration of dirt, dust and water
• Require no operating power, capable of actuating a dry contact input
• SMT designed electronics for higher quality, superior performance, and reduced cost
• Compatible with Rosslare’s access controllers as a REX or a system input (alarm or event)
• No polarity considerations for the switch
• Meets RoHS requirements



Specifications:

• Spec Sheet
• Installation Guide
