Rosslare - P-805 - Controller Expansion Board - 16 Inputs - For AC-825IP
Rosslare - P-805 - Controller Expansion Board - 16 Inputs - For AC-825IP
Rosslare
Precio habitual
$581.18 USD
Precio habitual
$697.41 USD
Precio de oferta
$581.18 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

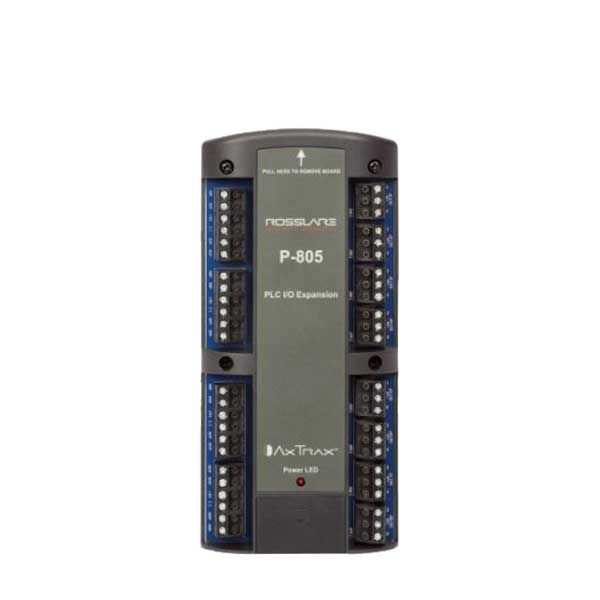

The P-805 is a 16-Input, 8-Output expansion board for the AC-825IP networked controller. The expansion board supports 16-supervised inputs and 8 relays (5 A
Form-C) for general purpose and security application. An expansion slot can expand the controllers and up to 12 extensions can be connected via OSDP connected.
Specifications:
| Enclosure: | ME-1515 (up to 2 R/S/D/P expansions) |
| Enclosure SMPS: | Input: 90 to 265 VAC, 50–60 Hz, Switch mode power management board Output: 12 VDC, 4 A |
| PCBA Input Power: | 12 VDC, 2 A, regulated power management board |
| Battery Charger: | 12 V sealed lead acid (SLA) up to 7 Ah |
| Relays 5 A, Form-C: | 8 |
| Inputs: | 16 |
| Readers (Wiegand+OSDP): | N/A |
| Connectivity: | OSDP |
| Board Dimensions: | 7.0 x 3.4 x 1.1 in. |
| Enclosure Dimensions: | 13.6 x 15.9 x 3.9 in. |
| Dimensions: | 6.2 x 2.3 x 1.3 in. |
| Product Warranty: | 2-Year Limited Product Warranty |
