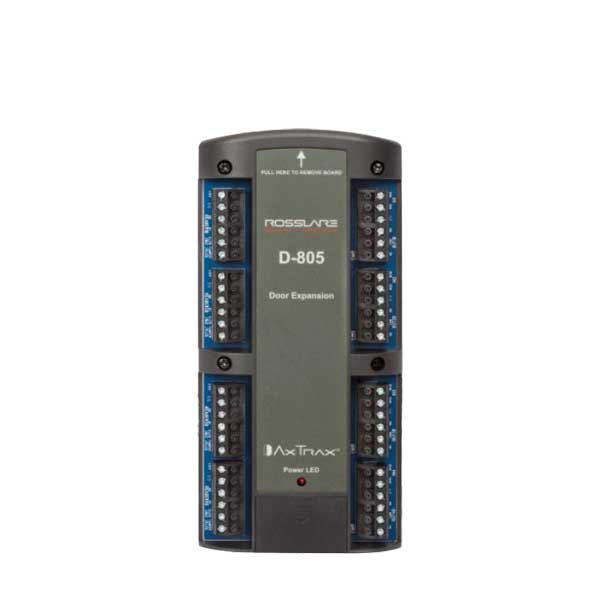

Rosslare - D-805 - Controller Expansion Board - 4-Door - For AC-825IP
Rosslare - D-805 - Controller Expansion Board - 4-Door - For AC-825IP
Rosslare
Precio habitual
$401.56 USD
Precio habitual
$434.13 USD
Precio de oferta
$401.56 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-ROS-D-805
The D-805 4 reader expansion board is one of four expansion boards (R/S/D/P-805) for the advanced AC-825IP networked controller. Ideal for residential and commercial applications, The D-805 expansion board increases flexibility to the access control system by adding four readers, four doors, four relay outputs and eight supervised inputs to the controller.
More Information BelowSpecifications:
| Enclosure: | ME-1515 (up to 2 R/S/D/P expansions) |
| Enclosure SMPS: | Input: 90 to 265 VAC, 50–60 Hz, Switch mode power management board Output: 12 VDC, 4 A |
| PCBA Input Power: | 12 VDC, 2 A, regulated power management board |
| Battery Charger: | 12 V sealed lead acid (SLA) up to 7 Ah |
| Relays 5 A, Form-C: | 4 |
| Inputs: | 8 |
| Readers (Wiegand+OSDP): | 4 |
| Connectivity: |
OSDP |
| Board Dimensions: | 7.0 x 3.4 x 1.1 in. |
| Enclosure Dimensions: | 13.6 x 15.9 x 3.9 in. |
| Dimensions: | 6.2 x 2.3 x 1.3 in. |
| Product Warranty: | 2-Year Limited Product Warranty |
