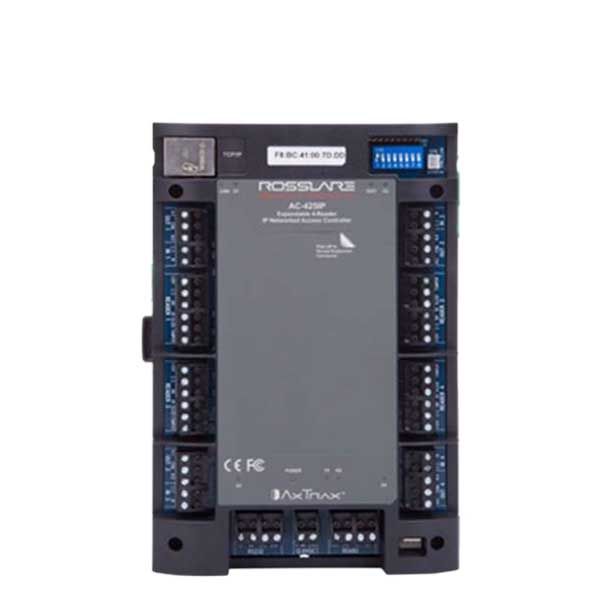

Rosslare - AC425 - Expandable Networked Access Control Panel - DIN Housing - 4 Readers - RS-485 - 30K Users - 20K Event History - 12VDC
Rosslare - AC425 - Expandable Networked Access Control Panel - DIN Housing - 4 Readers - RS-485 - 30K Users - 20K Event History - 12VDC
Rosslare
Precio habitual
$781.16 USD
Precio habitual
$783.71 USD
Precio de oferta
$781.16 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 4 reader Expandable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via Molex and Terminal Block.
Features:
- DIN Housing for DIN Rail Mounting
- Fully expandable up to 8 Readers and 12 Inputs/Outputs
- Networked up to 1023 Panels
- Networked up to 8184 Doors
- Supports up to 30,000 users in off-line mode, unlimited server based capacity
- 20,000 event history entries per computer
- multi-user authentication for high-level security
- supports a wide range of Wiegand and PIN formats
Specifications:
| Type: | Network Control Panel |
| Readers: | 4 reader ports, 8 reader ports when using MD-D04B Communication: Wiegand or Clock & Data Output voltage to reader: 12 VDC Max. current to reader: 245 mA LED control output and Tamper Input |
| Inputs: | 4 supervised high impedance inputs, 8 or 12 supervised inputs when using MD-D04B or MD-IO84B expansion boards Maximum voltage: 5 VDC |
| Outputs: | 4 Form C 5 Amp relay outputs, 8 outputs when using MD-D04B or MD-IO84B expansion boards |
| Interface: | RS-485 |
| RS-485 | Molex and Terminal Block |
| Selectable Comm. Speed: | 9600, 19200, 57600, 115200 bps |
| Max Readers: | 8 |
| Networking: | Rosslare's AxTraxNG™ Server |
| Users: | 30,000 active credentials (Card & PIN) |
| Unauthorized & Access Groups: | 30,000 Unauthorized Users |
| Event Log: | 20,000 Events |
| Operating Voltage: | 12 VDC, 1.5 A from a regulated power supply |
| Max Input Current: | Standby: 80 mA, Maximum: 325 mA |
| Visual Indicators: |
11 LEDs for outputs and communication status |
| Battery Standby Time: | 3 hours with a 12 V, 7 Ah lead acid battery |
| Housing: | Protective Cover & DIN Rail / Wall Mount |
| Dimensions: | 7.6 x 5.4 x 1.5 in. |
| Standard Approvals: | CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b |
| Warranty: | 2-Year Limited |
