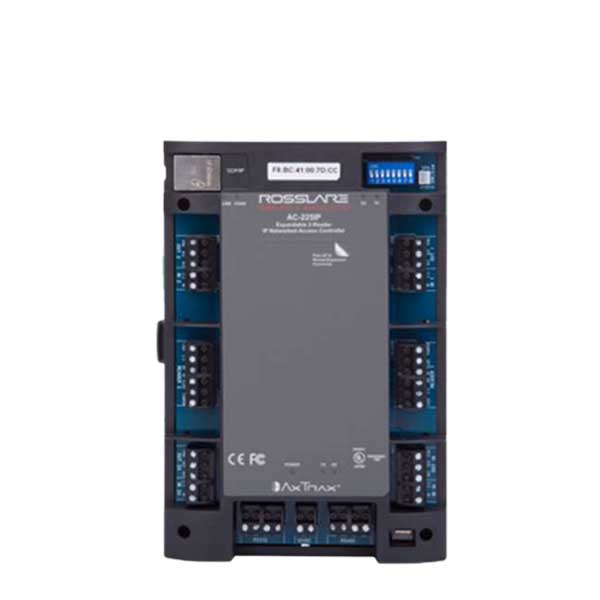

Rosslare - AC225 - Expandable Networked Access Control Panel - DIN Housing - 2 Readers - RS-485 - 30K Users - 20K Event History - 12VDC
Rosslare - AC225 - Expandable Networked Access Control Panel - DIN Housing - 2 Readers - RS-485 - 30K Users - 20K Event History - 12VDC
Rosslare
Precio habitual
$527.38 USD
Precio habitual
$569.90 USD
Precio de oferta
$527.38 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-ROS-AC-225-DIN-PCBA
Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 2 reader Expandable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in a variety of forms and configurations. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via Molex and Terminal Block.
Features:
- DIN Housing for DIN Rail Mounting
- Fully expandable up to 4 Readers and 12 Inputs/Outputs
- Networked up to 1023 Panels
- Networked up to 4092 Doors
- Supports up to 30,000 users in off-line mode, unlimited server based capacity
- 20,000 event history entries per computer
- multi-user authentication for high-level security
- supports a wide range of Wiegand and PIN formats
Specifications:
| Type: | Network Control Panel |
| Readers: | 2 reader ports, 4 reader ports when using MD-D02B Communication: Wiegand or Clock & Data Output voltage to reader: 12 VDC (battery only: 8.8-11.8 VDC) Max. current to reader: 245 mA LED control output and Tamper Input |
| Inputs: | 4 supervised high impedance inputs. 8 or 12 supervised inputs when using MD-D02B or MD-IO84B expansion boards. Maximum voltage: 5 VDC |
| Outputs: | 4 Form C 5 Amp relay outputs. 8 outputs when using MD-D02B or MD-IO84B expansion boards |
| Interface: | RS-485 |
| RS-485 | Molex and Terminal Block |
| Selectable Comm. Speed: | 9600, 19200, 57600, 115200 bps |
| Max Readers: | 4 |
| Networking: | Rosslare's AxTraxNG™ Server |
| Users: | 30,000 active credentials (Card & PIN) |
| Unauthorized & Access Groups: | 30,000 Unauthorized Users |
| Event Log: | 20,000 Events |
| Operating Voltage: | 12 VDC, 1.5 A from a regulated power supply |
| Max Input Current: | Standby: 80 mA, Maximum: 325 mA |
| Visual Indicators: |
11 LEDs for outputs and communication status |
| Battery Standby Time: | 3 hours with a 12 V, 7 Ah lead acid battery |
| Housing: | Protective Cover & DIN Rail / Wall Mount |
| Dimensions: | 7.6 x 5.4 x 1.5 in |
| Standard Approvals: | CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b |
| Warranty: | 2-Year Limited |
