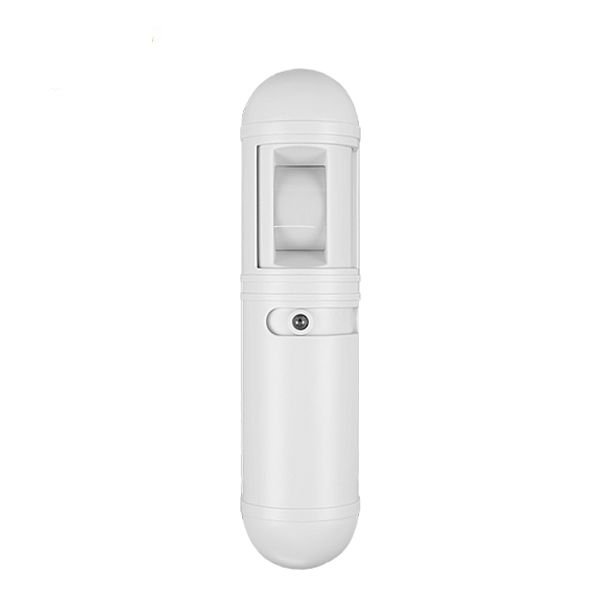

PDK - REX Sensor - Cloud Network Access Control Request-To-Exit Passive Infrared Sensor
PDK - REX Sensor - Cloud Network Access Control Request-To-Exit Passive Infrared Sensor
PDK
No se pudo cargar la disponibilidad de retiro
The REX sensor is specifically designed for indoor Request-To-Exit applications and features a passive infrared sensor with qualified motion analysis. The sensitivity of the REX sensor can be easily adjusted for long or short-range applications and features an adjustable time delay. Because of its sleek design, the REX sensor is easily mounted to any frame, header wall, or ceiling.
Model PN: REXM - Cloud Network Access Control Request-To-Exit Passive Infrared Sensor
Specifications
| Relay: | Ouput: 2C Contact(N.C/N.O), 24VDC 1A Max. Hold Time: 0.5-64 seconds |
| Detection Type: | Passive infrared |
| Coverage Range: | 12 x 5’ at 7’ high, 30 x 12’ at 15’ft high (adjustment) |
| Environmental: | Humidity: 0 - 95% relative humidity non-condensing |
| Enclosures: | Dimensions: (W x H x D) 6.53” x 1.57” x 1.53” Weight: 0.4 lbs / 6.4 oz / 182 g Plastic Enclosure |
| Power: | 12-24VDC or VAC |
| Manufacturer’s Limited Warranty | One to three-year warranty against defects in materials and workmanship. |
Package Contents -
- REX Sensor (1)
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
Quick Start Guide
Online Manual
