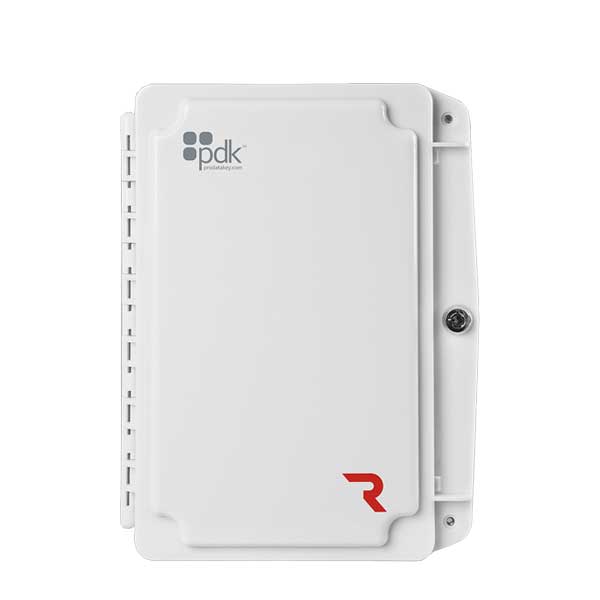

PDK - RED Gate - High-Security Outdoor Controller (Ethernet)

PDK - RED Gate - High-Security Outdoor Controller (Ethernet)

PDK

Precio habitual $1,304.38 USD
Precio habitual Precio de oferta $1,304.38 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

PDK-GCE

Keep Gates and Garages Secure.

Built with ethernet connectivity, self-discovery, sampling IP configuration and functionality. Equipped with OSDP, an onboard power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health. Additional plug-and-play power options are available by simply purchasing a Red PoE++ Module Kit.

Model PN: RGE - High-Security Outdoor Controller (Ethernet)

RED Gate Features

Advanced Security ProdataKey RedTM products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.

Power Monitoring Equipped with an on-board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.

Plug n’ Play Connectivity All PDK Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device no matter how large the job is.

Self Discoverable The Red Gate will be automatically discovered by the Cloud Node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.

Eliminate Trenching Protecting access to gates and exposed areas has never been easier or more cost-effective. Because of our WiMACTM wireless capabilities, the gate io eliminates the substantial expenses associated with trenching.

System Scalability Whether you need two doors or a thousand, the PDK Red Gate Controller gives you the flexibility to add more doors anytime, anywhere, on any device.

IMPORTANT: A PDK -  Cloud Node is required to operate the Single io, Eight io, and Eight io+ door controller products.

Specifications:

 Connections: Removable Screw-down Terminals
Built-in Power Supply
Industrial-grade 2A Form-C Relays (2)
Reader Input (2)
Input A (2)
Input B (2)
Communication Options: Ethernet
Environmental: Temperature: -20° ~ +60° F /-4° ~ +140° F
Humidity: 0 - 95% relative humidity
non-condensing
Enclosure: Dimensions (W x H x D 7” x 9.25” x 2.25”
Polycarbonate lockable security enclosure
NEMA 4X UL-rated enclosure
Power: 12V-24V DC Input
Powers readers and other door hardware
directly from the bus.
Recommended 12v 1.2Ah backup battery
(sold separately).
Manufacturer’s Limited Warranty One to five-year warranty against defects in
materials and workmanship.


Package Contents -

  • (1) RED Gate Controller (Ethernet)
  • (1) Battery Leads
  • (4) Jumpers
  • (4) Enclosure Screws
  • (2) Diodes

Data Sheet

Quick Start Guide

Online Manual
