PDK - Pushbutton Reader - Cloud Network Access Control Pushbutton PIN Reader (125 KHz Prox)
PDK - Pushbutton Reader - Cloud Network Access Control Pushbutton PIN Reader (125 KHz Prox)
PDK
No se pudo cargar la disponibilidad de retiro

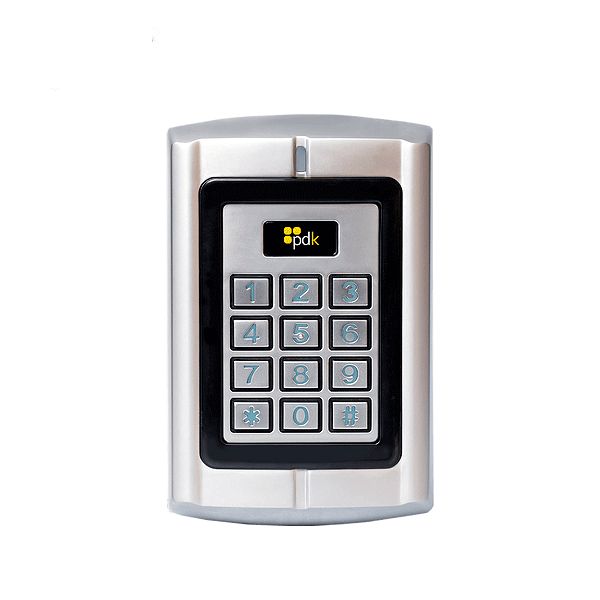

The Push Button Reader equipped with a rugged backlit keypad, weatherproof design, and a durable zinc alloy casing, is built for applications where durability is key. The Push Button Reader offers the ability to unlock doors with proximity credentials, PIN, or the flexibility to configure two-layer security by requiring users to present a credential and enter a PIN to gain access.
Model PN: RDRPB - Cloud Network Access Control Pushbutton PIN Reader
Specifications
| Input: | Frequency: 125 KHZ Read Range: from 1.1” up to 2.3” |
| Output: | Wiegand protocol Cable Distance: Wiegand 500’ (22 AWG) |
| Environmental: | Temperature: -40 ~ +140 F or -40 ~ +60 C Humidity: 0 - 95% relative humidity, non-condensing Protection Rating: IP65 |
| Enclosure: | Dimensions: (W x H x D) 3.22” x 5.03” x 1.10” Weight: 1.43 lbs / 22.9 oz / 650 g |
| Compliance: | Conforms to UL 294, FCC |
| Power: | 12-18V AC/12-24V DC (Linear power supply recommended) |
| Manufacturer’s Limited Warranty | One to five-year warranty against defects in materials and workmanship. For full details visit prodatakey.com. |
Package Contents -
- Card Reader (1)
- L Wrench (1)
- Self Tapping Screws (4)
- Expansion Rubber Bungs (4)
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
Online Manual
