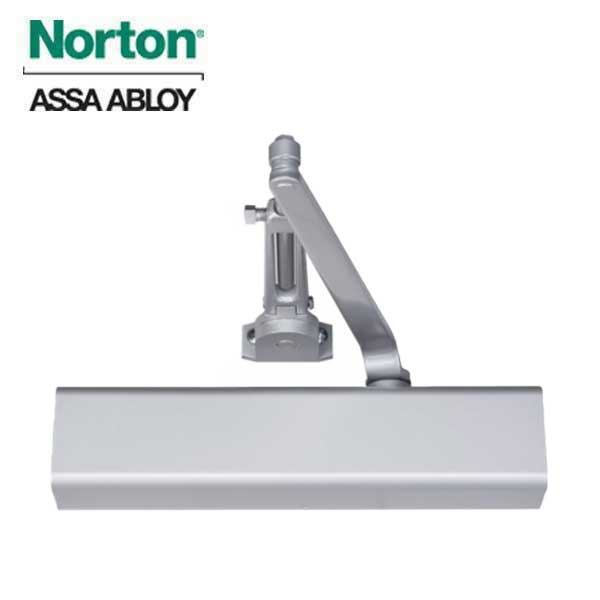

Norton - 8501H - Tri-Packed Manual Door Closer - Full Cover - Hold Open - Adjustable Arm - Sizes 1-6 - Satin Aluminum - Grade 1
Norton - 8501H - Tri-Packed Manual Door Closer - Full Cover - Hold Open - Adjustable Arm - Sizes 1-6 - Satin Aluminum - Grade 1
Norton
Precio habitual
$235.95 USD
Precio habitual
$283.13 USD
Precio de oferta
$235.95 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-NOR-8501-689-SN-H
The Norton 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.
Features:
- Exceeds 25 million cycles
- Non-handed
- Staked valves
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- Cast aluminum body
- Rack and pinion design
- All standard arm applications allow doors to swing 180°, conditions permitting
Specifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Manual Door Operator |
| Closer Type: | Hold Open |
| Interior or Exterior: | Universal |
| Handing: | Non-Handed |
| Finish: | 689 - Aluminum |
| Door Width: | 36 - 48" |
| Diameter Piston: | 1-1/4" |
| Diameter Pinion Journals: | 5/8" |
| Projection from Wall: | 2-1/8" |
| Mounting Style: |
Parallel, Regular, Top Jamb |
| Arm Type: | Adjustable Sizes 1 to 6, Standard |
| Fasteners: | Sleeve Nut / Sex Nut |
| Max. Door Opening: | 180 Degrees |
| ADA: | Meets requirements for Americans with Disabilities Act (ADA) |
| Fire Rating: | UL10c 90-minute positive pressure fire rating |
| Certifications: | ANSI/BHMA A156.19 certified Grade 1 |
| Warranty: | 30-Year Limited Manufacturer Warranty |
Downloads:
