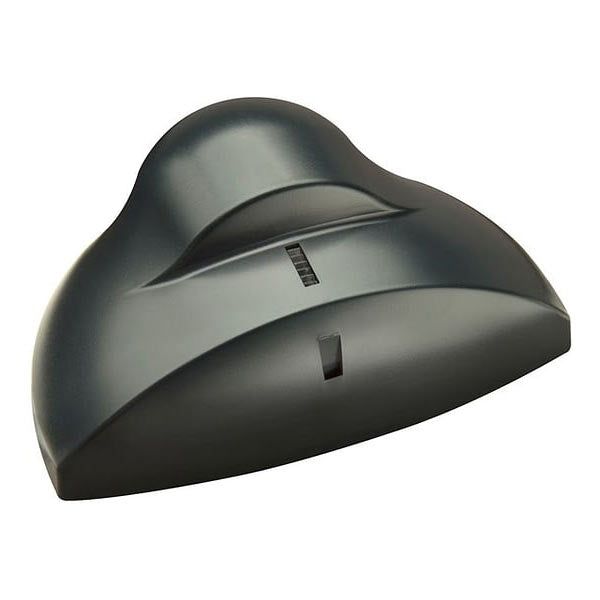

This is a Norton 663 Motion Sensor for Norton 5600, 5700, 6000, and 6300 series door operators.
Features
- 4-3/4" x 3-3/16" x 2" projection
- Unidirectional
- Black cover
- SPDT relay
- Adjustable angle pattern
- 24 VDC input
- Must not be placed where motion of door can be sensed
| Specifications | |
|---|---|
| Frequency | 24.125 GHz |
| Supply Voltage | 12 to 24 V AC: ± 10% 12 to 24 V DC: -10% / +30% |
| Mounting Height | Normal: 7’ Maximum: 10’-0” |
| Tilt Angle | 0° to 90° vertical -15° to +15° lateral |
| Detection Area | Wide: 13ft (W) x 6.5ft (D) Narrow: 6.5ft (W) x 8.2ft (D) (supplied as optional) |
| Minimum Detection Speed | 2 in/sec. (measured in axis) |
| Power Consumption | < 2 W |
| Max Contact Voltage | 60 VDC / 125 VAC |
| Max Contact Current | 1 A (resistive) |
| Max Switching Power | 30W (DC) / 60VA (AC) |
| Hold Time | 0.5 sec. to 9 sec. (adjustable) |
| Temperature Range | -4°F to 131°F |
| Dimensions | 4.75in (W) x 3.15in (H) x 2.0in (D) |
| Weight | 0.5lbs |
| Material | ABS |
| Housing Color | Black. Can be painted with non-metallic paint |
| Cable Length | 6ft |
| Compatibility | 5600, 5700, 6000, & 6300 Series Norton Door Operators |
