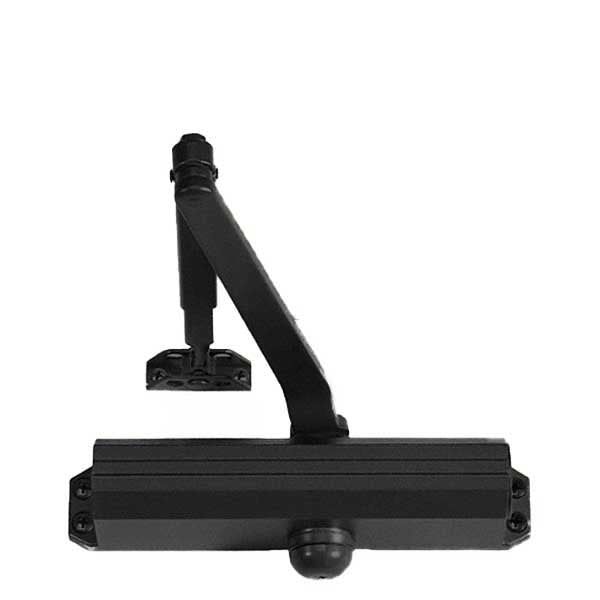

Norton - 1601 - Tri-Packed Manual Door Closer - Adjustable Arm - Size 1-6 - Black - Grade 1

Norton - 1601 - Tri-Packed Manual Door Closer - Adjustable Arm - Size 1-6 - Black - Grade 1

Norton

Precio habitual $207.56 USD
Precio habitual $249.15 USD Precio de oferta $207.56 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-NOR-1601-693

The 1600 Series Door Closers offer proven quality, performance, and reliability unmatched by the competition. A staple in the industry, these ANSI/BHMA Grade 1 closers are designed for exterior or interior doors. a full complement of regular and heavy-duty arms, brackets, and options make the 1600 series ideal for virtually any medium traffic, commercial application.

Features:

  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum closer body
  • can swing door 180 degrees from closed position
  • staked valves
  • adjustable spring sizes 1-6


Specifications:

Construction: Heavy-Duty cast-aluminum body
Function: Hydraulic Manual Door Closer
Closer Type:  Non-Hold
Handing: Non-Handed
Ligature Resistant: No
Closer Mounting Style:  Parallel, Regular, Top Frame
Finish:  Black
Arm Type:  Adjustable Sizes 1 to 6, Standard
Door Width: 48 in
Housing Height: 2-5/8 in
Housing Length: 9 3/4 in
Max. Door Opening: 180 Degrees
Piston Diameter: 1 3/8 in
Projection from Wall: 2 7/8 in
Pinion Journals Diameter: 5/8 in
Fire Rating: 3 hrs.
Certifications: ANSI A156.4 Grade 2, UL and cUL Listed
