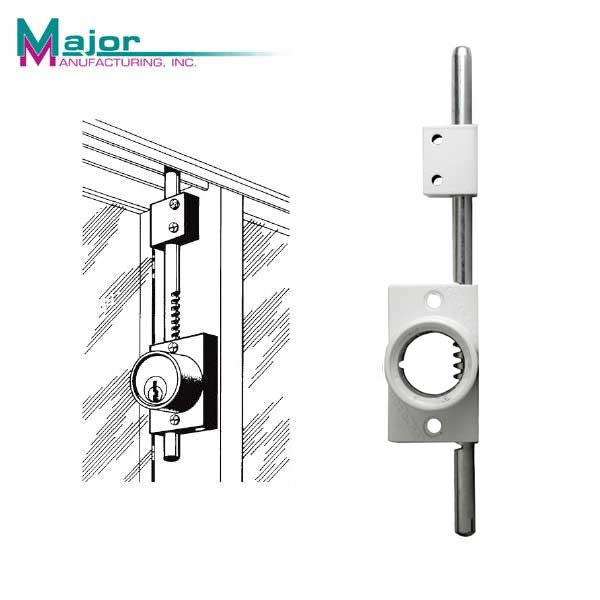

Major Mfg - The Octopod - 9" Lock Bar - Less Cylinder - for Sliding Patio Doors and Windows - White Powdercoat

SLK-MJR-5002-1-9W
Item Number: XXXX

The Octopod 5002 Series Single Point / 1 Locking Rod. Aluminum Powdercoat - 3/8" diameter x 9" Locking Rod - #1 Gear for standard mortise cylinders. A 360-degree rotation of the key will drive the locking rod 2 3/8 inches. All required parts for installation supplied including one-rod guide and both Phillips and one-way screws, the cylinder is not included. Requires a 1-1/8 inch mortise cylinder.

• Ideal for sliding patio doors, sliding windows, swinging doors, double doors, french doors and other applications.
• Can be used on narrow style doors and frames with a width of only 1-5/8".
• Lock housing accepts standard 1-1/8" mortise cylinder (Sold Separately) allowing it to be keyed to other locks in a system.
• Mounts at top or bottom of door.
• Equipped with a 3/8" diameter x 9" long locking bolt with a 2-3/8" throw standard
• White Powdercoat
