LK-EC783

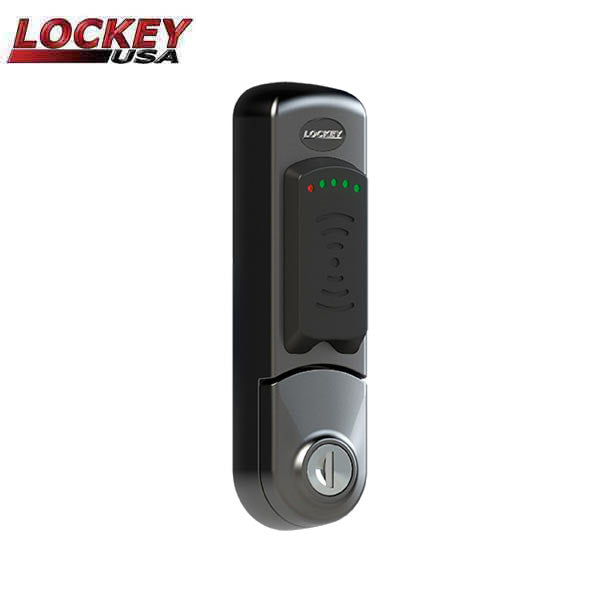

This is a Lockey EC783 RFID Electronic Cabinet Lock.
Features
- Public and Private user modes
- Key override
- Up to 80,000 cycles per pair of AA batteries
- Battery condition indicator
- Audible actuation (can be turned on/off)
- Each lock can hold up to 30 user cards
Specifications
| DIMENSIONS | 136mm (5 3/8″) L x Width: 37mm (1 1/2″) W x 30mm (1 3/16”) D |
| FINISHES AVAILABLE | Black (Jet Black), Silver (Satin Chrome) |
| DIRECTIONS AVAILABLE | Vertical |
| MOUNTING HOLE SHAPE |
2 or 3 point mounting |
| SPINDLE LENGTH |
20mm standard |
| POWER |
2 x AA Battery (Alkaline) |
| OPERATIONS |
Up to 80,000 cycles per pair of AA batteries |
| LOW BATTERY |
LED lights with battery condition indicator |
| MATERIAL |
Zinc diecast |
| STANDARD CAM CAPABILITY | 1/4” to 1 1/2” |
| KEYS INCLUDED | 2 |
| APPLICATION |
For internal use |
| WARRANTY | 3 Year Electronic |
Programming Options
- Change master card
- Add user card
- Delete all user cards
- Delete single user card (with user card)
- Delete single user card (without user card)
- Set private mode & public mode
- Set audio
- Auto unlock
- Set read speed
Compatible With (Sold Separately)
RFID Cards
EC Series Key Blanks
EC Series Extension Kit
Numbered Trim Plate
Downloads
Installation Instructions Programming Instructions
Spec Sheet
