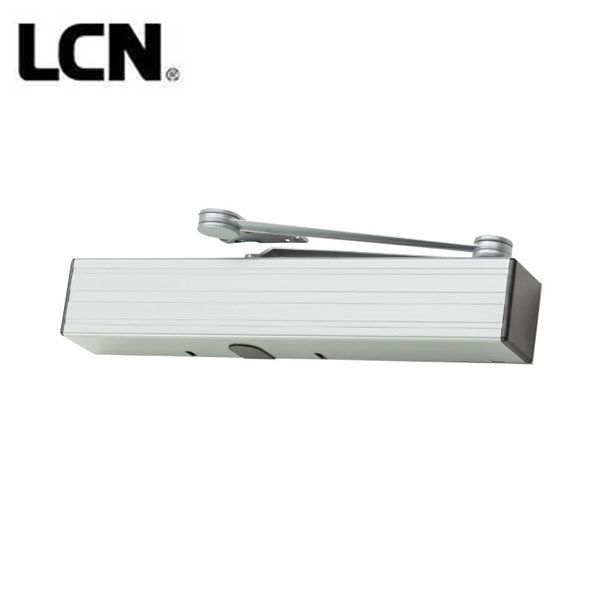

LCN - 4642 - Auto Equalizer Door Operator - Electrohydraulic - Fire Rated - Regular Arm Function - Aluminum - 12VDC/24VDC - Grade 1

LCN - 4642 - Auto Equalizer Door Operator - Electrohydraulic - Fire Rated - Regular Arm Function - Aluminum - 12VDC/24VDC - Grade 1

LCN

Precio habitual $7,474.90 USD
Precio habitual $8,969.87 USD Precio de oferta $7,474.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-LCN-4642-REGARM-AL

The 4640 auto equalizer is LCN’s smart and reliable electrically powered low-energy automatic operator. It provides easy access for people with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally required automatic opening.

Features

  • Exceeds proposed ANSI cycle test standard of 300,000 full load automatic operating cycles
  • Power operation plus full door control
  • For all applications, single or multi-door projects
  • Opening time to back check no faster than 3 seconds
  • Opening time 4 seconds or more to fully open
  • Must remain fully open for at least 5 seconds
  • Closing time from 90° to 10° no faster than 3 seconds
  • Less than 15 pounds-force to stop door’s motion
  • Kinetic energy must not exceed 1.25 lbf-ft
  • In event of failure; less than 15 lbf. to release latch, less than 30 lbf. to put door in motion, less than 15 lbf. to fully open door systems

Specifications

Cover  Metal Cover
Finish 689 - Aluminum
Arms Regular Arm
Handing Non-Handed
Fasteners Wood and Machine Screws
Size Adjustable spring size 2-5
Mounting Top jamb (push side)
Accessibility
Available with less than 5.0 lbs. opening force on 36" door
Fluid Top jamb (push side)
Power Supply 12V DC and 24V DC outputs
Body construction

Cast iron body
full complement bearing
1 1⁄2" diameter piston
3⁄4" diameter double heat treated pinion journal

Fire Rated UL 10C
Certifications Grade 1, ANSI A117.1, A156.19, UL 10C, ADA,100 Hour Salt Spray, BAA
Manufacturer's Warranty 2 Years
