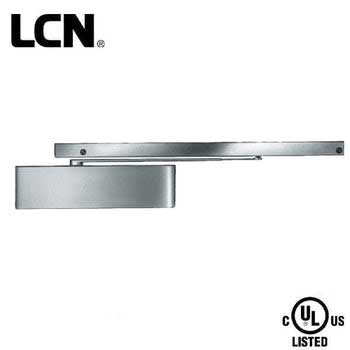

LCN - 4040SE - Standard Arm Track Door Closer - 24V - Aluminum - Grade 1

LCN - 4040SE - Standard Arm Track Door Closer - 24V - Aluminum - Grade 1

LCN

Precio habitual $1,141.58 USD
Precio habitual $1,462.89 USD Precio de oferta $1,141.58 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

 SLK-LCN-4040SE-STD-24V-AL

The LCN 4040SE SENTRONIC Standard Arm Track Door Closer is a heavy duty, non-handed, non-sized closer/holder designed to provide single point hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors.

More Information Below



    Specifications
    Body Construction Cast Iron Body
    Full Complement Bearing
    1-1/2" Diameter Piston
    3/4" Diameter Single Heat Treated
    Pinion Journal
    Fluid All Weather Fluid
    Handing Non-Handed
    Size Adjustable Spring Size, up to 4
    Warranty 2 years
    Cover Clip-on plastic, standard
    Fasteners Wood and machine screw pack
    Mounting Hinge (Pull Side), Stop Face (Push Side)
    Arms Standard arm and SE track, standard
    Finish Aluminum (689)
    Wiring Concealed or surface, interfaces with fire
    alarm systems
    Butt hinges Should not exceed 5" (127 mm) in width
    Auxiliary stop Recommended at hold-open point
    Reveal Should not exceed 1/8" (3 mm) for standard arm
    Top rail Minimum 3-1/2" (89 mm)
    Head Frame
    Requires 2" (51 mm) minimum
    Flush Ceiling 2" (51 mm) head frame does not require special templating
    Door Width 2'4" (711 mm) minimum for single door with SE
    4'8" (1422 mm) minimum for paired doors with SE
    Clearance 2-3/8" (60 mm) behind door required for 90° installation
    Maximum Opening Templating allows 110°
    Hold-open points between 85° and 110° in approximately 3° increments
    Electrical These track assemblies require a single power circuit for the holding solenoid
    Circuitry accepts either AC or DC input
    Certifications UL listed for smoke barrier or labeled fire
    doors
    cUL listed for self-closing doors without hold-open
    Tested and certified under ANSI Standard A156.15
    Conforms to life safety code, NFPA 101
    Fire Rated for 3 Hours
