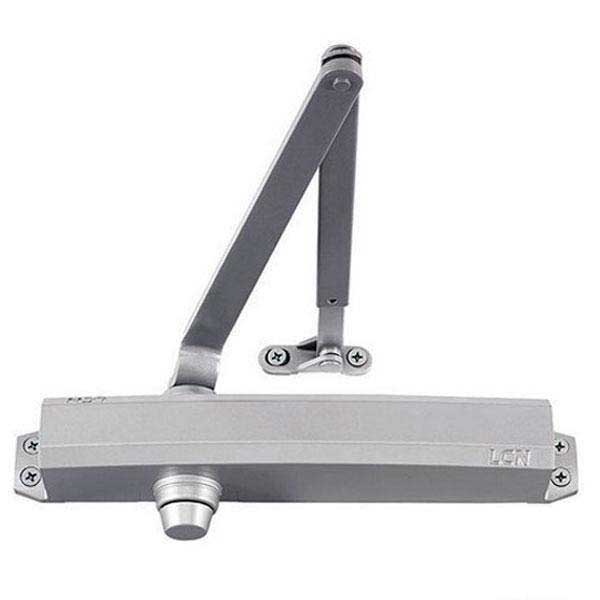

LCN - 1450 - Surface Mounted Door Closer - RW/PA - Aluminum - Grade 1

LCN - 1450 - Surface Mounted Door Closer - RW/PA - Aluminum - Grade 1

LCN

Precio habitual $346.45 USD
Precio habitual $249.04 USD Precio de oferta $346.45 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-LCN-1450-RW-PA-AL

The 1450 Series cast aluminum closer was specially designed to deliver consistent, dependable, long-term performance in frequently-used, low-abusive traffic areas. With the industry's most common hole pattern it can fit a range of applications like aftermarket replacement, aluminum storefronts, and new construction projects.

More Information Below



    Specifications
    Body Construction Cast aluminum body
    Full complement bearing
    1 1⁄4" diameter piston
    5⁄8" diameter single heat treated pinion journal
    Fluid All-weather fluid
    Handing Non-Handed
    Templating Peel-n-stick templates - 3⁄4" x 12" mounting hole pattern
    Size Adjustable Spring Size 1-6
    Warranty 25 years
    Cover Slim line plastic, standard
    Full plastic and metal, optional
    Fasteners Universal screw pack (UNIV)
    Mounting Hinge (pull side), top jamb (push side),
    parallel arm (push side)
    Arms RW/PA = Regular Arm with Parallel Arm Bracket
    Finish Aluminum
    Butt hinges Should not exceed 5" (127 mm) in width
    Auxiliary stop Recommended at hold open point or where a door cannot swing 180°
    Reveal Should not exceed 3⁄4" (19 mm) for regular armor 1⁄2" (13 mm) for Hold Open Arm
    Top rail Less than 2 1
    ⁄2" (64 mm) requires plate, 1260-18
    Clearance 2 3⁄8" (60 mm) behind door required for installation



    Dimensions



    Downloads
    Specifications

    Please Note: Bulk price rates are available! Call us at (855) 928-0349.
